2000 Series Automatic Single Switch Socket Outlet 250VAC, 10A, Round Earth PIN

Home ProductsPower Points and Switches2000 SeriesAutomatic Single Switch Socket Outlet

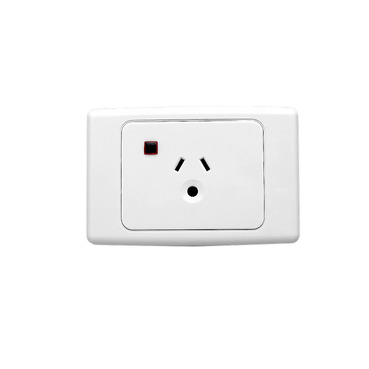

2000 Series Automatic Single Switch Socket Outlet 250VAC, 10A, Round Earth PIN | White Electric

Item Number: 2010LN-WE

See from a distance whether your appliance is plugged in correctly with the Automatic Single Switched Socket Outlet with round earth pin. Most often used with lighting circuits, the round earth pin outlet features a neon indicator so you can see when power is in use.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Socket in kitchen

Features

  • Gloss surface finish
  • Choice of single, double and automatically switched power points
  • Added extras such as neons, safety shutters and extra switches allow for even more versatility
  • Safety shutters help prevent accidental contact with live terminals within the power point
  • Option of included leakage and surge protection

Specifications

Design

Range of product

Series 2000

Product or component type

socket-outlet

Product brand

Clipsal

Physical

Quantity per set

set of 1

Marking

without marking

Protection type

fingersafe

Local signalling

indicator light

Fixing mode

by screws

[in] rated current

10 A

[ue] rated operational voltage

250 V AC

Depth

31 mm

Length

116 mm

Width

76 mm

Fixing center

84 mm

Standards

  • AS/NZS 3100
  • AS/NZS 3112
  • AS/NZS 3133:approval number S/1

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Circularity profile

N/A

Others

Commercial status history

  • SESA301466
  • Thu Aug 10 18:38:00 EDT 2023
  • From Import Local
  • From 18 to 19

Package 1 bare product quantity

1

Cover type

full cover plate

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.1 cm

Package 1 width

7.6 cm

Package 1 length

11.6 cm

Package 1 weight

105 g

Unit type of package 2

BB1

Number of units in package 2

5

Package 2 height

11.9 cm

Package 2 width

8.3 cm

Package 2 length

17.9 cm

Package 2 weight

525 g

Unit type of package 3

CAR

Number of units in package 3

50

Package 3 height

18.2 cm

Package 3 width

30.8 cm

Package 3 length

45.3 cm

Package 3 weight

5.25 kg
Show all specifications
Office

Range

The contemporary styling and flexibility of the 2000 Series and C2000 range have made it a popular range of switches and power points.

2000 Series and C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters. The extensive product range also includes dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
