2000 Series Automat. Single Switch Socket Outlet 250VAC, 10A, Round Earth PIN W/Shutter and Neon | White Electric
Item Number: 2010N-WE

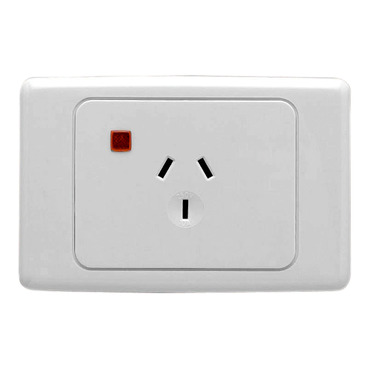

Plug in your appliance and see from a distance whether it is on with the Single Switch Automatic Socket with Neon indicator. The unique grid assembly and surround have excellent functionality, flexibility and style. The gloss finish and rounded corners make the outlet easy to keep clean.
Datasheet
Features
- Gloss surface finish
- Choice of single, double and automatically switched power points
- Added extras such as neons, safety shutters and extra switches allow for even more versatility
- Safety shutters help prevent accidental contact with live terminals within the power point
- Option of included leakage and surge protection
Specifications
Design
| Range of product | Series 2000 |
|---|---|
| Product or component type | socket-outlet |
| Product brand | Clipsal |
Physical
| Quantity per set | set of 1 |
|---|---|
| Local signalling | without light indicator |
| [in] rated current | 10 A |
| [ue] rated operational voltage | 250 V AC |
| Depth | 31 mm |
| Length | 116 mm |
| Fixing center | 84 mm |
| Protection type | fingersafe |
| Width | 76 mm |
| Standards |
|
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP120506EN |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
-
All
-
CAD Files and Packs
-
Product Brochures
-
Technical Data Catalogues
-
Declaration of Conformity (Sustainability)
-
BIM Model
Range
The contemporary styling and flexibility of the 2000 Series and C2000 range have made it a popular range of switches and power points.
2000 Series and C2000 range offers a range of stylish switches in standard and architrave sizes. Power points are available in single, double and automatic models, in vertical or horizontal format, with options such as neons, extra switches and safety shutters. The extensive product range also includes dimmers, fan speed controllers, timers, weatherproof switches and TV, data and phone sockets.
