Easy UPS UPS BVS 500VA, AVR, 230V, Australia

Home ProductsNetwork ConnectivityUPSUPS

Easy UPS UPS BVS 500VA, AVR, 230V, Australia

Item Number: BVS500I-AZ

1 PCE 0

Datasheet

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304346456	-

Specifications

Design

Range of product	Back-UPS
Product or component type	uninterruptible power supply (UPS)
Warranty	2 years

Physical

Rated power in w	300 W
Mounting support	wall-mount
Mounting mode	wall mount
Product certifications	CE RCM
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1712010EN
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Others

	Outside of Europe
Warranty duration(in months) bmecat	24
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
Weee label	N/A
Main input voltage	230 V AC 1 phase
Rated power in va	500 VA
Battery type	lead-acid internal included
Control panel	LED Status display with on line : on battery
Ups connectivity	none
Cable length	1.52 m
Type of signal	sine wave
Graph display	1
Operating altitude	0...1968.3 m
Battery type	lead-acid battery sealed rechargeable internal battery
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.362 cm
Package 1 width	1.422 cm
Package 1 length	3.734 cm
Package 1 weight	4.2 kg
Scc14	10731304346453
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	Yes
Product contributes to saved and avoided emissions	No
Removable battery	Yes
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
End of life manual availability	ENVEOLI1712010_EN
Removable battery	Yes
Take-back	Yes
Warranty (in months)	24

Show all specifications

Documents & downloads

All
Product Brochures
Technical Data Catalogues
End of Life Manual
Environmental Disclosure
Operating Manuals
Certificates (MSDS)
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

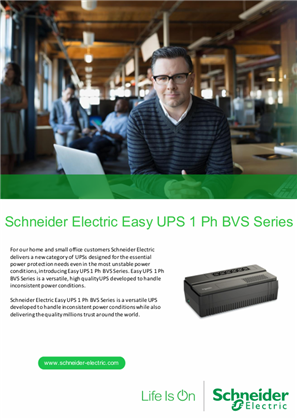

SE EASY UPS 1 PH BVS BROCHURE

SE EASY UPS 1 PH BVS BROCHURE

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 463.7 KB

EASY UPS BV Family Overview Brochure - 230V

EASY UPS BV Family Overview Brochure - 230V

VERSION

1.0

DATE

02 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 680.6 KB

End of Life instructions for BACK UPS _EN

End of Life instructions for BACK UPS _EN

VERSION

1.0

DATE

16 Apr 2026

REVISION

1.0

DOWNLOAD (ZIP) 458.8 KB

Product Environmental Profile for BACK UPS _EN

VERSION

1.0

DATE

16 Apr 2026

REVISION

1.0

DOWNLOAD (ZIP) 969.8 KB

SE EASY UPS 1 PH BVS USER MANUAL

SE EASY UPS 1 PH BVS USER MANUAL

VERSION

1.0

DATE

23 Apr 2024

REVISION

1.0

DOWNLOAD (ZIP) 13.5 MB

SCHNEIDER EASY UPS BVS500/800I-AZ

SCHNEIDER EASY UPS BVS500/800I-AZ

VERSION

1.0

DATE

05 Jul 2022

REVISION

1.0

DOWNLOAD (ZIP) 821.2 KB

CB certificate for SE EASY UPS BVS 1000/800/650/500VA, AVR, 230V

CB certificate for SE EASY UPS BVS 1000/800/650/500VA, AVR, 230V

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 283.7 KB

EMC Schneider BVS 500/650/800/1000 230V

EMC Schneider BVS 500/650/800/1000 230V

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 217 KB

BVS500I-AZ EU RoHS Directive

BVS500I-AZ EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

BVS500I-AZ EU RoHS Directive

BVS500I-AZ EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
