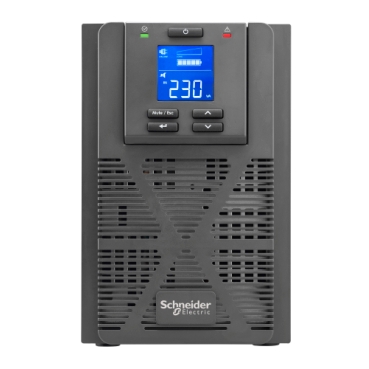

Easy UPS Tower 1000VA, 230V, 2x Australian outlets, Intelligent Card Slot, LCD

Easy UPS Tower 1000VA, 230V, 2x Australian outlets, Intelligent Card Slot, LCD

Item Number: SRVS1KI-AZ

Datasheet

Product Dimensions

Width icon

Width145 mm

Height icon

Height223 mm

Depth icon

Depth288 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Easy UPS 1Ph On-Line

Product or component type

uninterruptible power supply (UPS)

Warranty

2 years repair or replace

Physical

Rated power in w

800 W

Number of cables

1

Height

223 mm

Width

145 mm

Depth

288 mm

Net weight

9.3 kg

Mounting mode

not rack-mountable

Mounting position

vertical

Mounting mode

tower

Product certifications

CE

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Ambient air temperature for storage

-20...50 °C

Ip degree of protection

IP20

Relative humidity

0...95 % non-condensing

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant

Others

Life cycle assessment data

No

If one of the deliverables is not relevant please give the reason

Brand Labelled/ODM Products

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Legacy weee scope

In

Weee label

N/A

Warranty duration(in months) bmecat

24

Outside of Europe

Presentation

For small to medium businesses, Easy UPS 1 Ph On-Line provides essential power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.

Main input voltage

230 V AC 1 phase

Input voltage

  • 220 V
  • 240 V

Input voltage limits

  • 110...285 V half load
  • 160...280 V full load

Network frequency

40...70 Hz auto sensing

Output voltage

  • 220 V
  • 240 V

Rated power in va

1000 VA

Bypass type

internal bypass (automatic and manual)

Crest factor

3 : 1

Additional information

Configurable for 220 : 230 or 240 nominal output voltage

Battery type

lead-acid internal included

Control panel

multifunction LCD status and control console

Free slots

1

Alarm

alarm when on battery : distinctive low battery alarm : configurable delays

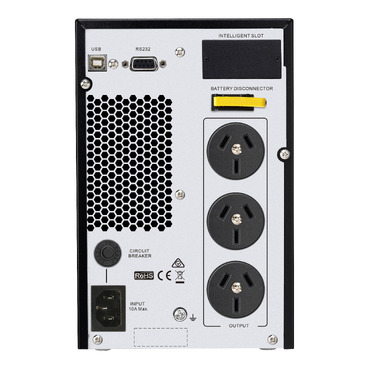

Ups connectivity

  • serial port
  • USB port
  • available expansion slot

Cable length

1.48 m

Mounting location

front

Usb compatible

Yes

Graph display

1

Storage altitude

0...15000 m

Storage relative humidity

0...95 % non-condensing

Acoustic level

50 dBA

Operating altitude

0...3000 m

Battery type

lead-acid battery

Battery voltage

24 V

Battery life

3...5 year(s)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

33 cm

Package 1 width

23.5 cm

Package 1 length

36.5 cm

Package 1 weight

10.6 kg

Sustainable packaging

No

Energy efficiency optimized

False

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

China rohs label

1

Take-back

No

Warranty (in months)

24
