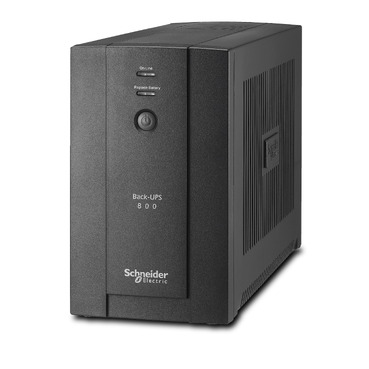

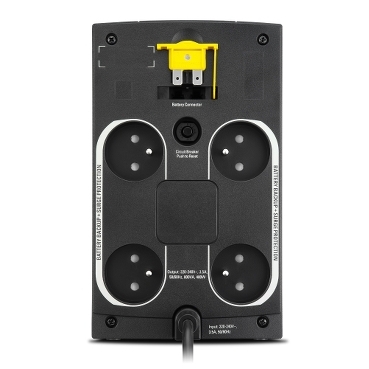

Back-UPS SX3 Schneider Electric Back-UPS 800VA, 230V, AVR, 7 IEC outlets

Item Number: SX3800CI

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width130 mm

Height215 mm

Depth336 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304307440	-

Specifications

Design

Range of product	Back-UPS
Product or component type	uninterruptible power supply (UPS)
Warranty	2 years repair or replace

Physical

Rated power in w	480 W
Height	215 mm
Width	130 mm
Depth	336 mm
Net weight	8 kg
Mounting mode	not rack-mountable
Product certifications	CE GOST NEMKO
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Ambient air temperature for storage	-15...45 °C
Relative humidity	0...95 %
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1712010EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	At least in Europe
Warranty duration(in months) bmecat	24
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Main input voltage	230 V
Switching current capacity	7 A
Input voltage limits	150...280 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Rated power in va	800 VA
Control panel	LED Status display with on line : on battery
Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Usb compatible	No
Graph display	1
Storage altitude	0...30000 ft
Storage relative humidity	0...95 %
Acoustic level	45 dBA
Operating altitude	0...10000 ft
Battery type	lead-acid battery
Number of battery replacement quantity	1
Battery life	3...5 year(s)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	29.5 cm
Package 1 width	24.5 cm
Package 1 length	44 cm
Package 1 weight	8.772 kg
Unit type of package 2	P12
Number of units in package 2	12
Package 2 height	50 cm
Package 2 width	80 cm
Package 2 length	120 cm
Package 2 weight	120 kg
Scc14	60731304307442
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	No
Product contributes to saved and avoided emissions	Yes
Removable battery	Yes
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	b2b22a56-41f2-497e-9ea6-cf093b3b8bd3
Product contributes to saved and avoided emissions	Yes
End of life manual availability	ENVEOLI1712010_EN
Removable battery	Yes
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	24
