Back-UPS SX3 Schneider Electric Back-UPS 650VA, 230V, AVR, 5 IEC outlets

Item Number: SX3650CI

1 PCE 0

Where To Buy

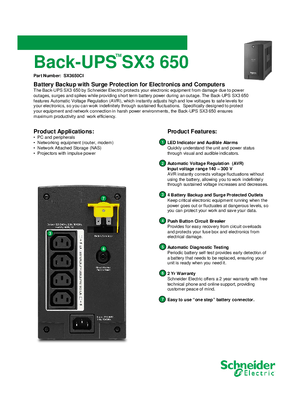

Datasheet

Download

Product Dimensions

Width115 mm

Height200 mm

Depth257 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304307433	-

Specifications

Design

Range of product	Back-UPS
Product or component type	uninterruptible power supply (UPS)
Warranty	2 years repair or replace

Physical

Rated power in w	390 W
Height	200 mm
Width	115 mm
Depth	257 mm
Net weight	6.2 kg
Mounting mode	not rack-mountable
Product certifications	CE GOST NEMKO
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Ambient air temperature for storage	-15...45 °C
Relative humidity	0...95 %
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1712010EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 2 bare product quantity	10
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty duration(in months) bmecat	24
	At least in Europe
Main input voltage	230 V
Switching current capacity	7 A
Input voltage limits	140...300 V
Network frequency	45...65 Hz
Rated power in va	650 VA
Control panel	LED Status display with on line : on battery
Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Cable length	3.81 ft
Usb compatible	No
Graph display	1
Storage altitude	0...30000 ft
Acoustic level	45 dBA
Operating altitude	0...10000 ft
Battery type	lead-acid battery
Battery life	3...5 year(s)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	19.800 cm
Package 1 width	27.000 cm
Package 1 length	34.000 cm
Package 1 weight	7.000 kg
Unit type of package 2	P12
Number of units in package 2	10
Package 2 height	80.000 cm
Package 2 width	80.000 cm
Package 2 length	120.000 cm
Package 2 weight	72.000 kg
Scc14	60731304307435
Green premium status for reporting	Green Premium product
Sustainable packaging	No
Energy efficiency optimized	False
F-gas free	N/A
Take-back	Yes
Product contributes to saved and avoided emissions	Yes
Removable battery	Yes
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	b2b22a56-41f2-497e-9ea6-cf093b3b8bd3
Product contributes to saved and avoided emissions	Yes
End of life manual availability	ENVEOLI1712010_EN
Removable battery	Yes
Take-back	Yes
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	24
