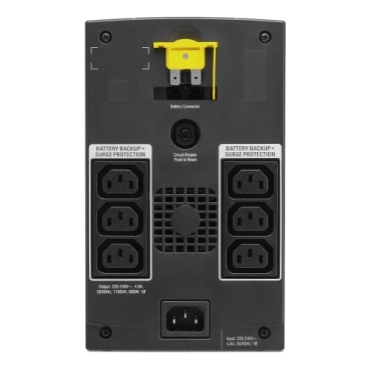

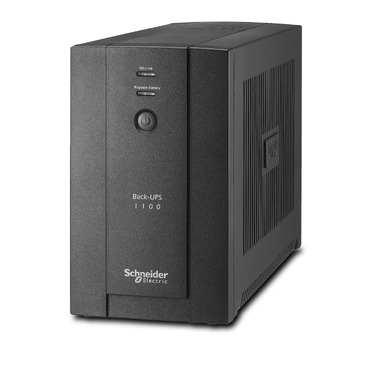

Back-UPS SX3 Schneider Electric Back-UPS 1100VA, 230V, AVR, 7 IEC outlets

Home ProductsNetwork ConnectivityUPSSchneider Electric Back-UPS

Back-UPS SX3 Schneider Electric Back-UPS 1100VA, 230V, AVR, 7 IEC outlets

Item Number: SX31K1CI

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width130 mm

Height icon

Height215 mm

Depth icon

Depth336 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Range of product

Back-UPS

Warranty

2 years repair or replace

Physical

Rated power in w

660 W

Number of cables

1

Height

215 mm

Width

130 mm

Depth

336 mm

Net weight

12 kg

Mounting mode

not rack-mountable

Product certifications

  • CE
  • GOST
  • NEMKO

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 %

Ambient air temperature for storage

-15...45 °C

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1712010_EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

5

Average percentage of recycled plastic content

0 %

Legacy weee scope

In

Substance regulation data deliverable

Yes

At least in Europe

Life cycle assessment data

Yes

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Lead time

Usually in Stock

Main input voltage

230 V

Rated power in va

1100 VA

Cable length

3.81 ft

Battery type

lead-acid battery

Usb compatible

No

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

150...280 V

Switching current capacity

10 A

Graph display

1

Operating altitude

0...10000 ft

Storage relative humidity

0...95 %

Storage altitude

0...30000 ft

Acoustic level

45 dBA

Battery life

3...5 year(s)

Control panel

LED Status display with on line : on battery

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

24.500 cm

Package 1 width

29.500 cm

Package 1 length

44.000 cm

Package 1 weight

12.893 kg

Unit type of package 2

P12

Number of units in package 2

5

Package 2 height

50.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

67.000 kg

Scc14

60731304307411

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

Energy efficient product

F-gas free

N/A

Take-back

Yes

Product contributes to saved and avoided emissions

Yes

Removable battery

Yes

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

b2b22a56-41f2-497e-9ea6-cf093b3b8bd3

Energy efficiency optimized

Energy efficient product

Product contributes to saved and avoided emissions

Yes

End of life manual availability

ENVEOLI1712010_EN

Removable battery

Yes

Take-back

Yes

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

24
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • Specification Guide

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
Product Environmental Profile for BACK UPS _EN
ZIP

Product Environmental Profile for BACK UPS _EN

VERSION

1.0

DATE

02 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 969.8 KB
End of Life instructions for BACK UPS _EN
ZIP

End of Life instructions for BACK UPS _EN

VERSION

1.0

DATE

02 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 458.8 KB

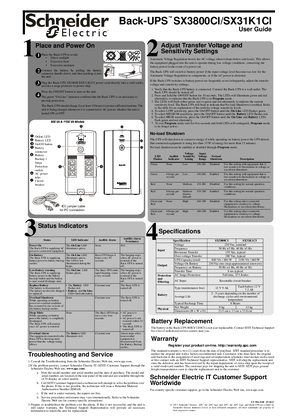

Back-UPS SX3800CI/SX31K1CI User Guide
ZIP

Back-UPS SX3800CI/SX31K1CI User Guide

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 83.4 KB

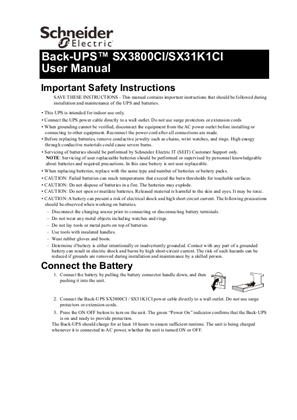

Back-UPS SX3800CI and SX31K1CI
ZIP

Back-UPS SX3800CI and SX31K1CI

VERSION

2.0

DATE

14 Aug 2022

REVISION

2.0

DOWNLOAD (ZIP) 223.3 KB

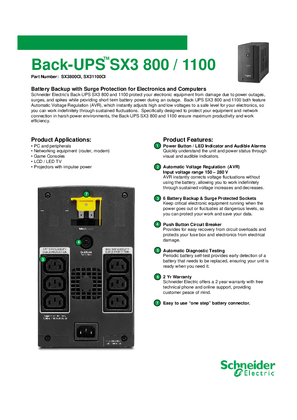

Back-UPS SX3 SX3800CI and SX31K1CI Specification Sheet
ZIP

Back-UPS SX3 SX3800CI and SX31K1CI Specification Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 125.5 KB
UK Declaration of Conformity
ZIP

UK Declaration of Conformity

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 375.7 KB

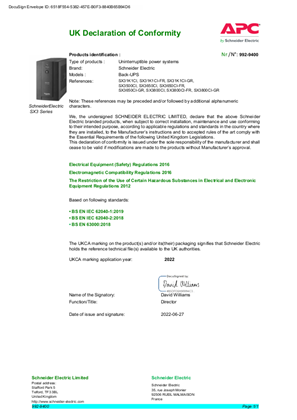

UKCA Declaration of Conformity 992-9400
ZIP

UKCA Declaration of Conformity 992-9400

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 370.9 KB

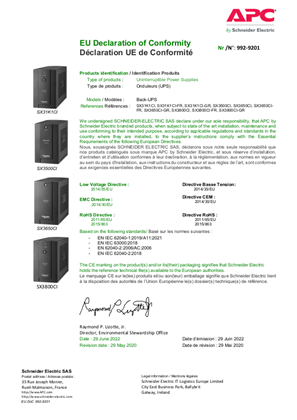

EU Declaration of Conformity-992-9201
ZIP

EU Declaration of Conformity-992-9201

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 258.7 KB

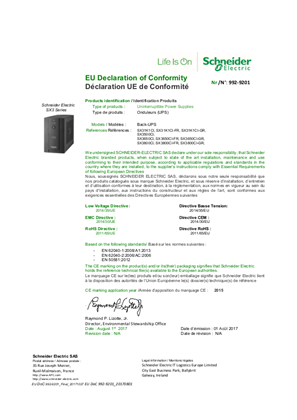

CE DOC for UPS SX3
ZIP

CE DOC for UPS SX3

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 815.8 KB
EAC certificate for BackUPS
ZIP

EAC certificate for BackUPS

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 519.4 KB

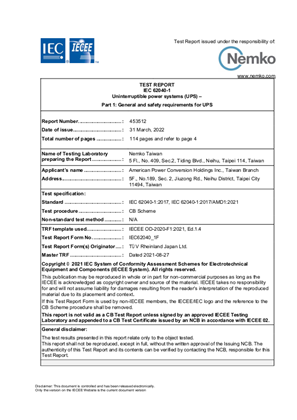

Nemko CB certificate for SX3800CI/SX3800CI
ZIP

Nemko CB certificate for SX3800CI/SX3800CI

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 5.2 MB

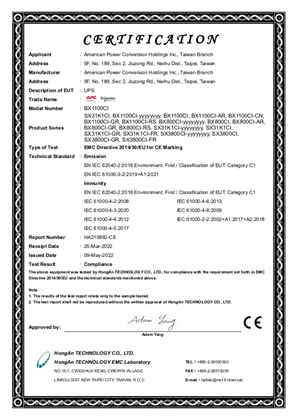

EMC Schneider BACK-UPS 800VA 1100VA WITH AVR, 230V
ZIP

EMC Schneider BACK-UPS 800VA 1100VA WITH AVR, 230V

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 167.5 KB

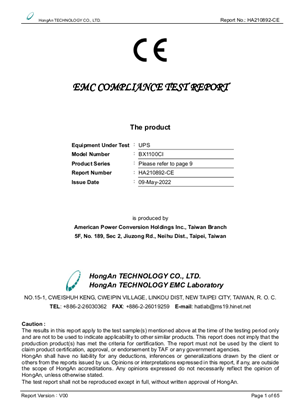

EMC report for SCHNEIDER BACK-UPS 800/1100VA,AVR, EU MEDIUM
