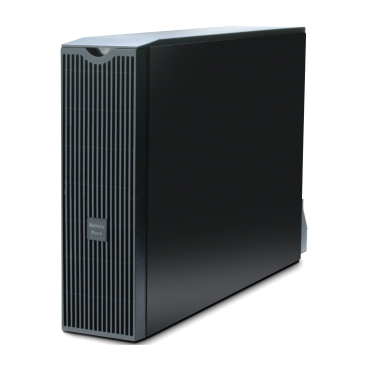

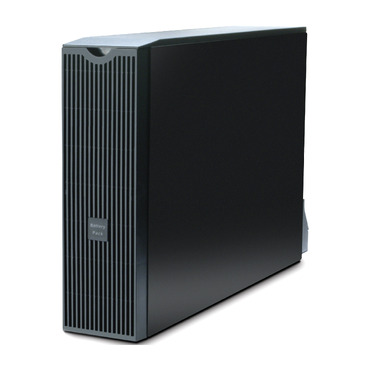

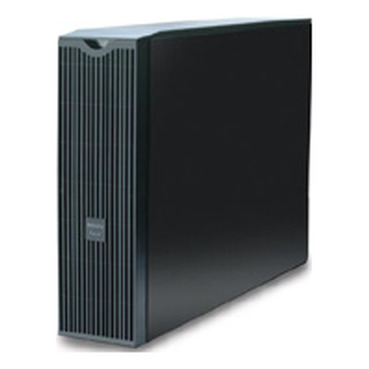

Smart-UPS Battery Systems Battery Pack RT 192V

Home ProductsNetwork ConnectivityUPSBattery Pack

Smart-UPS Battery Systems Battery Pack RT 192V

Item Number: SURT192XLBP

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width43.2 cm

Height icon

Height13 cm

Depth icon

Depth66 cm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

battery

Range of product

Smart-UPS Battery Systems

Warranty

2 years repair or replace, optional on-site warranties available, optional extended warranties available

Physical

Provided equipment

  • installation guide
  • user manual

Height

13 cm

Width

43.2 cm

Depth

66 cm

Net weight

90.91 kg

Mounting mode

rack-mounted with kit

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 %

Ambient air temperature for storage

-15...45 °C

Device mounting

stand alone battery stack

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1612036_EN

Circularity profile

ENVEOLI1612036_EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Commercial status history

  • SESA301466
  • Tue Jul 09 10:08:00 EDT 2024
  • From Import Local
  • From 08 to 19

Package 1 bare product quantity

1

Lead time

Usually in Stock

Number of rack unit

3U

Battery type

lead-acid battery

Usb compatible

No

Operating altitude

0...10000 ft

Storage altitude

0...50000 ft

Storage relative humidity

0...95 %

Battery life

3...5 year(s)

Battery voltage

192 V

Additional information

Replace all batteries in operation together (UPS internal and external batteries) all-at-once

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

41.300 cm

Package 1 width

60.000 cm

Package 1 length

100.000 cm

Package 1 weight

101.360 kg

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Take-back

Yes

Take-back

Yes

Product contributes to saved and avoided emissions

No

Removable battery

User replaceable

Removable battery

User replaceable

Carbon footprint (kg.eq.co2 per cr, total life cycle)

464.1229462069

Global warming ; total life cycle​

464 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • Declaration of Conformity

  • Certificates (MSDS)

  • Information label

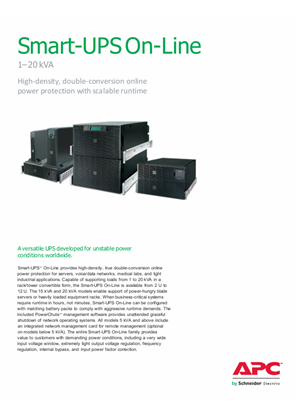

Smart-UPS On-Line Brochure 230V
ZIP

Smart-UPS On-Line Brochure 230V

VERSION

1.0

DATE

04 Oct 2023

REVISION

1.0

DOWNLOAD (ZIP) 315.3 KB

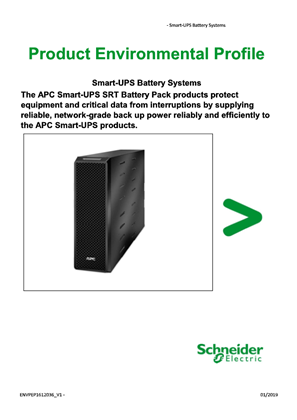

Product Environmental Profile for APC External Battery Pack_EN
ZIP

Product Environmental Profile for APC External Battery Pack_EN

VERSION

1.0

DATE

28 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 3 MB

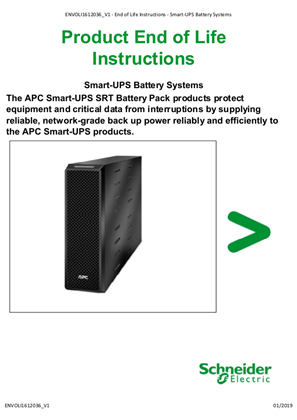

End of Life instructions for APC External Battery Pack _EN
ZIP

End of Life instructions for APC External Battery Pack _EN

VERSION

1.0

DATE

28 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 667.9 KB

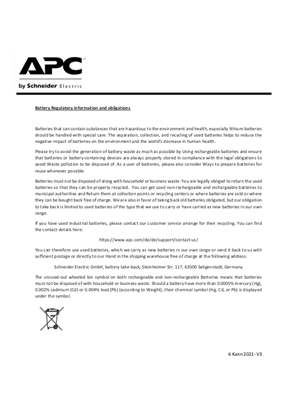

Battery Regulatory Information
ZIP

Battery Regulatory Information

VERSION

1.0

DATE

17 Dec 2022

REVISION

1.0

DOWNLOAD (ZIP) 557.5 KB

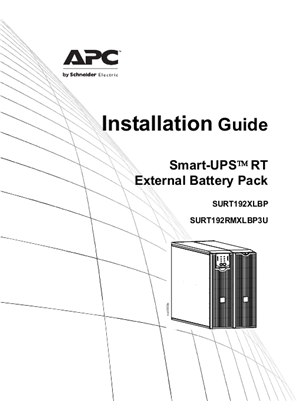

External Battery Pack SURT192RMXLBP3U/SURT192XLBP
ZIP

External Battery Pack SURT192RMXLBP3U/SURT192XLBP

VERSION

1.1

DATE

10 Aug 2022

REVISION

1.1

DOWNLOAD (ZIP) 531 KB

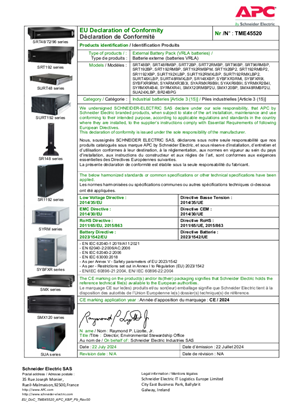

EU DoC for Back-UPS, On-line & Line- interactive of Lead acid
ZIP

EU DoC for Back-UPS, On-line & Line- interactive of Lead acid

VERSION

1.0

DATE

06 Aug 2024

REVISION

1.0

DOWNLOAD (ZIP) 463.3 KB

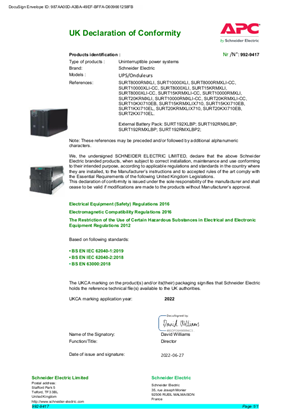

UKCA Declaration of Conformity 992-9417
ZIP

UKCA Declaration of Conformity 992-9417

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 443.7 KB

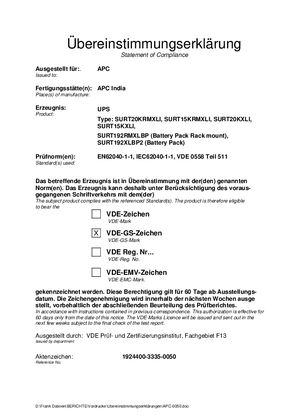

VDE for SURT20KRMXLI
ZIP

VDE for SURT20KRMXLI

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 26.7 KB

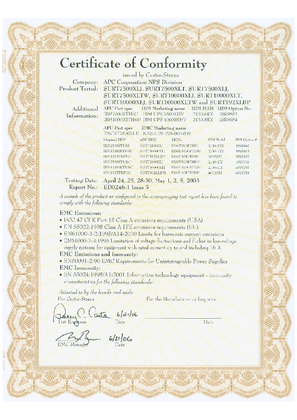

EMC Certifcate of Conformity for the SURT7500XLI
ZIP

EMC Certifcate of Conformity for the SURT7500XLI

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 449.6 KB

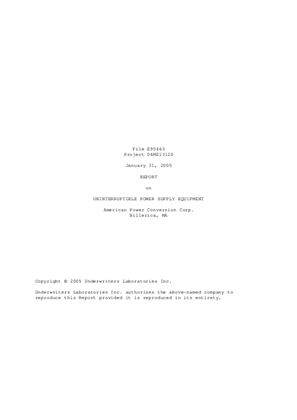

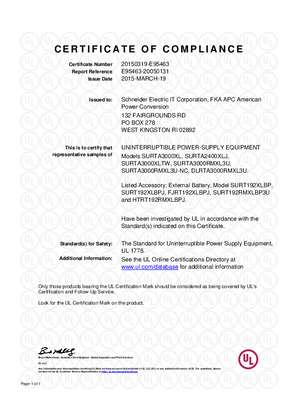

UL Certificate for APC Smart UPS RT 2400VA and 3000VA
ZIP

UL Certificate for APC Smart UPS RT 2400VA and 3000VA

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 174.9 KB
BSMI(Formerly BCIQ),CSA Certified,UL Listed
ZIP

BSMI(Formerly BCIQ),CSA Certified,UL Listed

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 13.3 KB

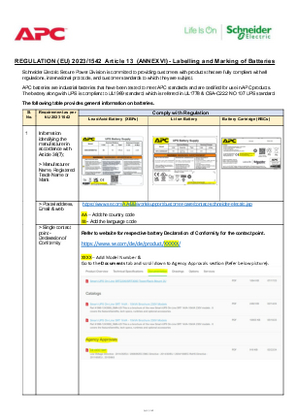

Labelling and Marking of Batteries
ZIP

Labelling and Marking of Batteries

VERSION

4.0

DATE

30 Oct 2024

REVISION

4.0

DOWNLOAD (ZIP) 1.5 MB
