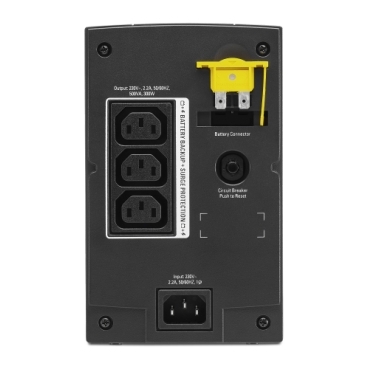

Back-UPS SX3 Back UPS 500VA, 230V, AVR, IEC Sockets

Home ProductsNetwork ConnectivityUPSBack UPS

Back-UPS SX3 Back UPS 500VA, 230V, AVR, IEC Sockets

Item Number: SX3500CI

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width11.5 cm

Height icon

Height18.5 cm

Depth icon

Depth21.3 cm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Range of product

Back-UPS

Warranty

2 years repair or replace

Physical

Rated power in w

300 W

Number of cables

1

Provided equipment

user manual

Height

18.5 cm

Width

11.5 cm

Depth

21.3 cm

Net weight

5.2 kg

Mounting mode

not rack-mountable

Product certifications

  • CE
  • GOST
  • NEMKO

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 %

Ambient air temperature for storage

-15...45 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1712010_EN

Circularity profile

ENVEOLI1712010_EN

Others

Commercial status history

  • SESA655729
  • 2025-01-08 22:46
  • From SPD Spread
  • From 08 to 14

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 2 bare product quantity

10

Package 1 bare product quantity

1

Lead time

Usually in Stock

Main input voltage

230 V

Rated power in va

500 VA

Cable length

6 ft

Usb compatible

No

Network frequency

45...65 Hz

Input voltage limits

160...280 V

Switching current capacity

7 A

Graph display

1

Operating altitude

0...10000 ft

Storage relative humidity

0...95 %

Storage altitude

0...50000 ft

Acoustic level

45 dBA

Control panel

LED Status display with on line : on battery

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

19.000 cm

Package 1 width

25.700 cm

Package 1 length

29.100 cm

Package 1 weight

5.680 kg

Unit type of package 2

P12

Number of units in package 2

10

Package 2 height

80.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

62.000 kg

Scc14

60731304307428

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

b2b22a56-41f2-497e-9ea6-cf093b3b8bd3

Green premium status for reporting

Green Premium product

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Optimized energy efficiency

Energy efficient product

Optimized energy efficiency

Energy efficient product

Take-back

Yes

Take-back

Yes

Product contributes to saved and avoided emissions

Yes

Product contributes to saved and avoided emissions

Yes

Removable battery

Yes

Removable battery

Yes

Minimum percentage of recycled plastic content

0
