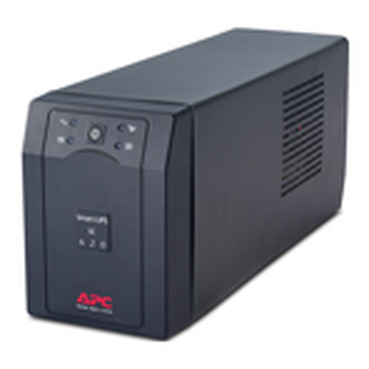

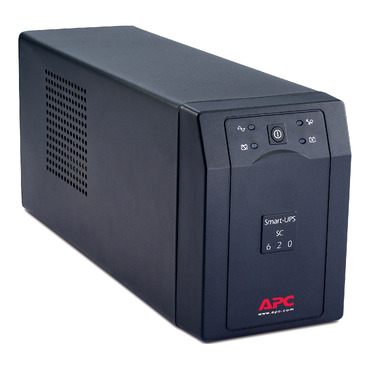

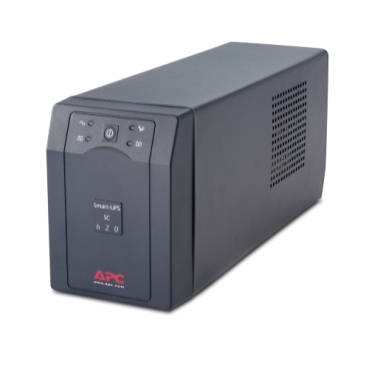

Smart-UPS APC Smart-UPS SC 620VA 230V

Home ProductsNetwork ConnectivityUPSAPC Smart-UPS

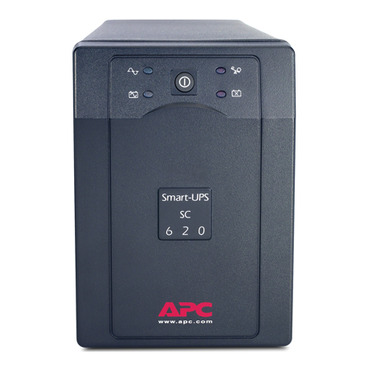

Smart-UPS APC Smart-UPS SC 620VA 230V

Item Number: SC620I

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width119 mm

Height icon

Height168 mm

Depth icon

Depth375 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Smart-UPS

Product or component type

uninterruptible power supply (UPS)

Warranty

2 years repair or replace

Physical

Rated power in w

390 W

Height

168 mm

Width

119 mm

Depth

375 mm

Net weight

12.27 kg

Mounting mode

not rack-mountable

Mounting mode

tower

Provided equipment

  • CD with software
  • Smart UPS signalling RS-232 cable
  • user manual

Product certifications

  • CE
  • EAC
  • GOST
  • VDE
  • VCCI

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Ambient air temperature for storage

-15...45 °C

Relative humidity

0...95 %

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1612028_V2

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant By Exemption

Others

Substance regulation data deliverable

Yes

Life cycle assessment data

Yes

Package 1 bare product quantity

1

Legacy weee scope

In

Warranty duration(in months) bmecat

24

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Average percentage of recycled plastic content

0 %

At least in Europe

Presentation

APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. The Smart-UPS SC features network grade protection, hot swap batteries, and built-in data line protection for worry free uninterruptible power protection for increased availability. Built on the same standards as the award-winning Smart-UPS, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications

Lead time

Usually in Stock

Main input voltage

230 V AC

Input voltage limits

195...265 V

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Rated power in va

620 VA

Battery capacity

12.0 Ah

Battery type

lead-acid internal included

Free slots

0

Control panel

LED status display with on line : on battery : replace battery and overload indicators

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Ups connectivity

  • serial port
  • USB port

Number of rack unit

0U

Mounting location

front

Usb compatible

No

Additional specification

entry level

Performance multiplier

1

Value multiplier

1

Graph display

1

Storage altitude

0...50000 ft

Storage relative humidity

0...95 %

Acoustic level

45 dBA

Heat dissipation

70 Btu/h

Operating altitude

0...10000 ft

Battery type

lead-acid battery

Battery voltage

12 V

Number of battery replacement quantity

1

Battery life

3...5 year(s)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

31.8 cm

Package 1 width

50.8 cm

Package 1 length

26.2 cm

Package 1 weight

13.18 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

667 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

365.5522023454

Carbon footprint of the manufacturing phase [a1 to a3]

366 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

8.7327636791

Carbon footprint of the distribution phase [a4]

9 kg CO2 eq.

Carbon footprint of the installation phase [a5]

2.5386783082

Carbon footprint of the installation phase [a5]

3 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

277.3419706923

Carbon footprint of the use phase [b2, b3, b4, b6]

277 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

13.3159040184

Carbon footprint of the end-of-life phase [c1 to c4]

13 kg CO2 eq.

Energy efficiency optimized

False

F-gas free

N/A

Take-back

Yes

Product contributes to saved and avoided emissions

No

Removable battery

User replaceable

Total lifecycle carbon footprint

667.4815190434

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

b2b22a56-41f2-497e-9ea6-cf093b3b8bd3

End of life manual availability

ENVEOLI1612028_EN

Removable battery

User replaceable

Take-back

Yes

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

24
Show all specifications

Documents & downloads

Filter items

  • All

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • Safety Data Sheet (SDS or MSDS)

  • Declaration of Conformity (Sustainability)

  • Certificates (MSDS)

  • Declaration of Conformity

  • Warranty

  • Firmware

Important: Some software files may need a mySchneider or Club login to download.
Product Environmental Profile for Smart UPS less than 1500
ZIP

Product Environmental Profile for Smart UPS less than 1500

VERSION

1.0

DATE

15 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 433.9 KB
Product Environmental Profile for Smart UPS less than 1500
ZIP

Product Environmental Profile for Smart UPS less than 1500

VERSION

1.0

DATE

02 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 433.9 KB

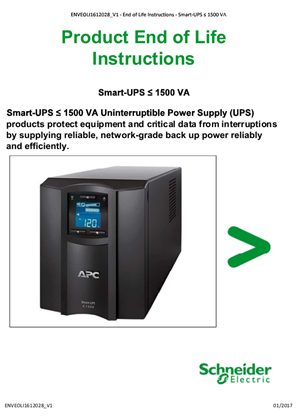

End of Life instructions for Smart UPS Less than 1500_EN
ZIP

End of Life instructions for Smart UPS Less than 1500_EN

VERSION

1.0

DATE

21 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 704.2 KB

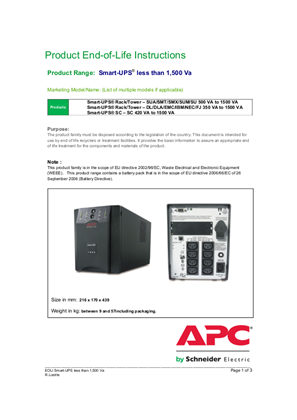

EoLi - Smart-UPS Less than 1500 VA
ZIP

EoLi - Smart-UPS Less than 1500 VA

VERSION

1.0

DATE

15 Oct 2025

REVISION

1.0

DOWNLOAD (ZIP) 421.7 KB
Important UPS Safety Information SAVE THIS GUIDE
ZIP

Important UPS Safety Information SAVE THIS GUIDE

VERSION

3.0

DATE

23 May 2025

REVISION

3.0

DOWNLOAD (ZIP) 196.1 KB

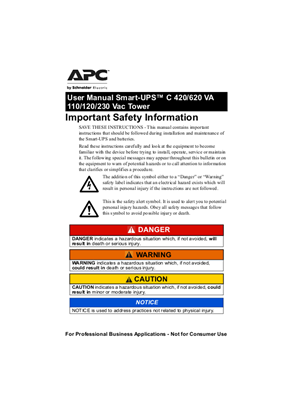

Smart-UPS C 420/620 VA 110/120/230 Vac Tower
ZIP

Smart-UPS C 420/620 VA 110/120/230 Vac Tower

VERSION

2.0

DATE

11 Sep 2022

REVISION

2.0

DOWNLOAD (ZIP) 340.5 KB
SDS_All_LeadAcid_Batteries
ZIP

SDS_All_LeadAcid_Batteries

VERSION

1.0

DATE

26 Jan 2026

REVISION

1.0

DOWNLOAD (ZIP) 388.2 KB
Valve Regulated Lead-Acid (VRLA) Industrial Battery (with Regulation (EU) 2020/878) - Safety Data Sheet
ZIP

Valve Regulated Lead-Acid (VRLA) Industrial Battery (with Regulation (EU) 2020/878) - Safety Data Sheet

VERSION

1.0

DATE

04 Dec 2025

REVISION

1.0

DOWNLOAD (ZIP) 443.7 KB
China_RoHS-Electronics
ZIP

China_RoHS-Electronics

VERSION

1.0

DATE

12 Jan 2026

REVISION

1.0

DOWNLOAD (ZIP) 124.6 KB
SC620I EU RoHS Declaration
ZIP

SC620I EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I EU RoHS Declaration
ZIP

SC620I EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I EU RoHS Declaration
ZIP

SC620I EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I EU RoHS Declaration
ZIP

SC620I EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I EU RoHS Declaration
ZIP

SC620I EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I EU RoHS Declaration
ZIP

SC620I EU RoHS Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I REACh Declaration
ZIP

SC620I REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I REACh Declaration
ZIP

SC620I REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I REACh Declaration
ZIP

SC620I REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I REACh Declaration
ZIP

SC620I REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I REACh Declaration
ZIP

SC620I REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0
SC620I REACh Declaration
ZIP

SC620I REACh Declaration

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

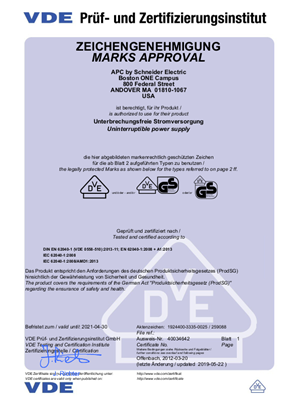

VDE GS certification mark
ZIP

VDE GS certification mark

VERSION

1.0

DATE

27 Jan 2025

REVISION

1.0

DOWNLOAD (ZIP) 327.6 KB
VDE CB Certificate SC420I
ZIP

VDE CB Certificate SC420I

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 126.2 KB

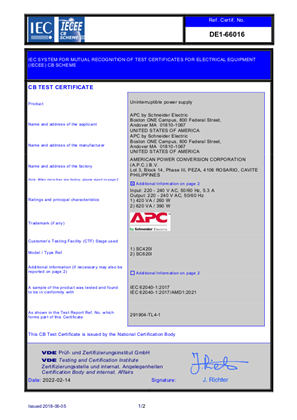

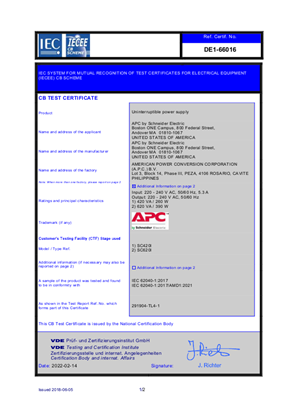

CB Certificate for SC420I and SC620I as per IEC62040-1:2021
ZIP

CB Certificate for SC420I and SC620I as per IEC62040-1:2021

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 310 KB

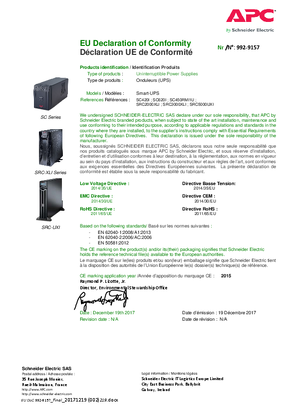

CE DoC for APC Smart-UPS SRC SC 230V
ZIP

CE DoC for APC Smart-UPS SRC SC 230V

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 143.5 KB
TISI certificate for Line Interactive UPS
ZIP

TISI certificate for Line Interactive UPS

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 393.1 KB

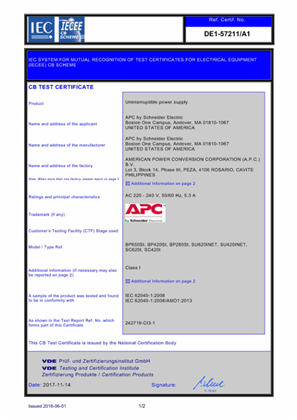

CB certificate SC series
ZIP

CB certificate SC series

VERSION

1.0

DATE

29 Dec 2021

REVISION

1.0

DOWNLOAD (ZIP) 1.3 MB
UK Declaration of Conformity
ZIP

UK Declaration of Conformity

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 450.8 KB

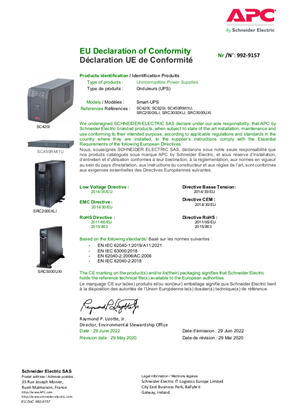

EU Declaration of Conformity-992-9157
ZIP

EU Declaration of Conformity-992-9157

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 244.1 KB

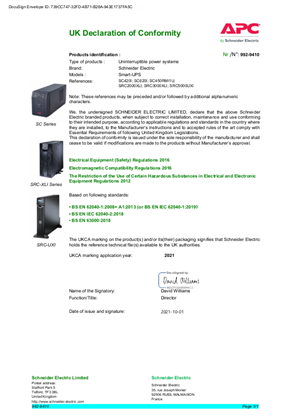

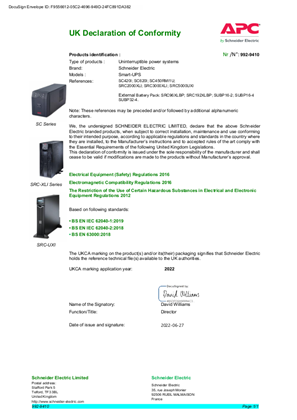

UKCA Declaration of Conformity 992-9410
ZIP

UKCA Declaration of Conformity 992-9410

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 447.5 KB

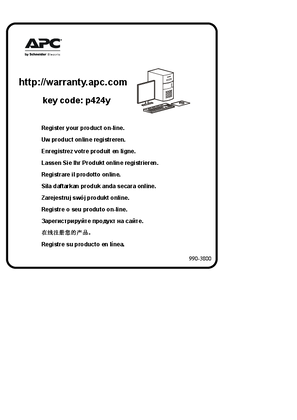

Smart-UPS Warranty Registration Card - International
