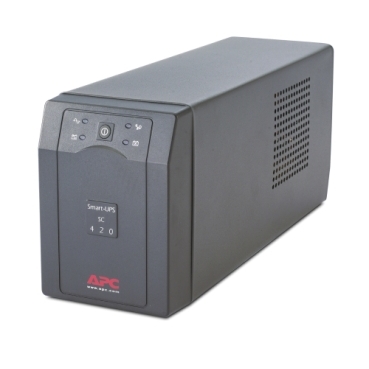

Smart-UPS APC Smart-UPS SC 420VA 230V

Home ProductsNetwork ConnectivityUPSAPC Smart-UPS

Smart-UPS APC Smart-UPS SC 420VA 230V

Item Number: SC420I

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width119 mm

Height icon

Height168 mm

Depth icon

Depth368 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Smart-UPS

Product or component type

uninterruptible power supply (UPS)

Warranty

2 years repair or replace

Physical

Rated power in w

260 W

Height

168 mm

Width

119 mm

Depth

368 mm

Net weight

9.09 kg

Mounting mode

not rack-mountable

Mounting mode

tower

Provided equipment

  • user manual
  • Smart UPS signalling RS-232 cable
  • CD with software

Product certifications

  • CE
  • EAC
  • GOST
  • NOM
  • VDE
  • VCCI

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Ambient air temperature for storage

-15...45 °C

Relative humidity

0...95 %

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1612028EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant By Exemption

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

6

Average percentage of recycled plastic content

0 %

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

At least in Europe

Warranty duration(in months) bmecat

24

Presentation

APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. The Smart-UPS SC features network grade protection, hot swap batteries, and built-in data line protection for worry free uninterruptible power protection for increased availability. Built on the same standards as the award-winning Smart-UPS, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications

Lead time

Usually in Stock

Main input voltage

230 V AC

Input voltage limits

195...265 V

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Rated power in va

420 VA

Harmonic distortion

less than 5 % at full load

Battery capacity

7.0 Ah

Battery type

lead-acid internal included

Free slots

0

Control panel

LED status display with on line : on battery : replace battery and overload indicators

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Ups connectivity

  • serial port
  • USB port

Number of rack unit

0U

Mounting location

front

Usb compatible

No

Additional specification

entry level

Performance multiplier

1

Value multiplier

1

Graph display

1

Storage altitude

0...50000 ft

Storage relative humidity

0...95 %

Acoustic level

45 dBA

Heat dissipation

50 Btu/h

Operating altitude

0...10000 ft

Battery type

lead-acid battery

Battery voltage

12 V

Number of battery replacement quantity

1

Battery life

3...5 year(s)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

26.000 cm

Package 1 width

31.500 cm

Package 1 length

50.500 cm

Package 1 weight

10.140 kg

Unit type of package 2

P12

Number of units in package 2

6

Package 2 height

45.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

72.840 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

False

F-gas free

N/A

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

b2b22a56-41f2-497e-9ea6-cf093b3b8bd3

End of life manual availability

ENVEOLI1612028_EN

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

24
Show all specifications
