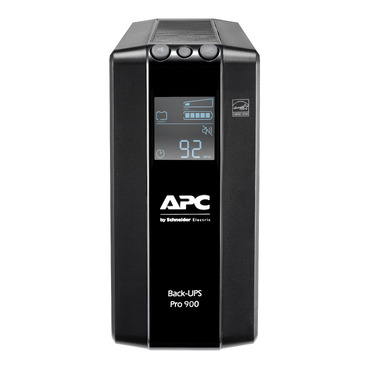

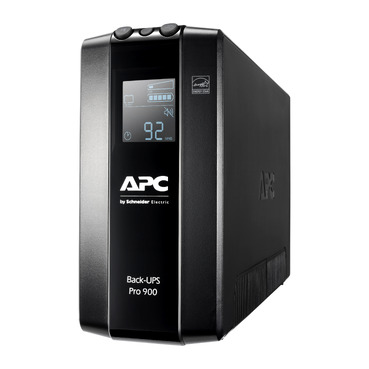

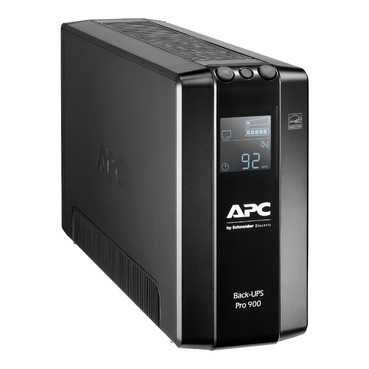

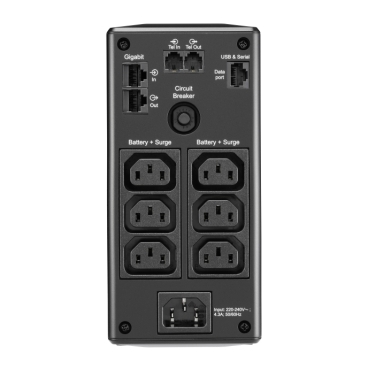

Back-UPS Pro APC Back-UPS Pro 900VA/540W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Item Number: BR900MI

1 PCE 0

This product is part of the Back-UPS Pro range. This 900VA UPS has 6 total that provide UPS power backup and surge protection. It features a built-in AVR and a LCD interface with audible alarms. Its runtime at 100 Watts is 42 minutes. Its dimensions are 19 x 9.1 x 31 cm and 7.1 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.

Where To Buy

Datasheet

Download

Product Dimensions

Width91 mm

Height190 mm

Depth310 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304346944	-

Specifications

Design

Range of product	Back-UPS Pro
Product or component type	uninterruptible power supply (UPS)
Warranty	2 years repair or replace, 3 years repair or replace for European Union countries

Physical

Rated power in w	540 W
Height	190 mm
Width	91 mm
Depth	310 mm
Net weight	7.1 kg
Mounting mode	not rack-mountable
Mounting mode	tower
Product certifications	A-Tick C-Tick CE EAC RCM TISI
Marking	GS Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Ambient air temperature for storage	-15...45 °C
Relative humidity	0...95 %
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1712010EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Package 2 bare product quantity	2
Package 3 bare product quantity	24
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	24
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Main input voltage	230 V AC 1 phase
Switching current capacity	10 A
Input voltage limits	176...294 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Rated power in va	900 VA
Type of usb power supply	none
Battery capacity	9.4 Ah
Battery type	lead-acid internal included
Control panel	multifunction LCD status and control console
Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Ups connectivity	USB port
Usb compatible	Yes
Graph display	1
Storage altitude	0...50000 ft
Storage relative humidity	0...95 %
Acoustic level	45 dBA
Heat dissipation	16.4 Btu/h
Operating altitude	0...10000 ft
Battery type	lead-acid battery
Battery voltage	12 V
Number of battery replacement quantity	1
Battery life	3...5 year(s)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	14.5 cm
Package 1 width	25.5 cm
Package 1 length	43 cm
Package 1 weight	8.0 kg
Unit type of package 2	S04
Number of units in package 2	2
Package 2 height	30 cm
Package 2 width	40 cm
Package 2 length	60 cm
Package 2 weight	16.8 kg
Unit type of package 3	P12
Number of units in package 3	24
Package 3 height	45 cm
Package 3 width	80 cm
Package 3 length	120 cm
Package 3 weight	213.8 kg
Scc14	10731304346941
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	288 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	77.34443636363636
Carbon footprint of the manufacturing phase [a1 to a3]	77 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.8336174545454543
Carbon footprint of the distribution phase [a4]	0.8 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	208.4043636363636
Carbon footprint of the use phase [b2, b3, b4, b6]	208 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.7352858181818182
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Energy efficiency optimized	Energy efficient product
F-gas free	N/A
Take-back	Yes
Product contributes to saved and avoided emissions	No
Removable battery	User replaceable
Total lifecycle carbon footprint	287.6567272727272
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	019b51cf-d7f1-4f06-ac85-1378fc94c7aa
Energy efficiency optimized	Energy efficient product
End of life manual availability	ENVEOLI1712010_EN
Removable battery	User replaceable
Take-back	Yes
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	24

Show all specifications

Documents & downloads

All
Product Brochures
End of Life Manual
Environmental Disclosure
Operating Manuals
Safety Data Sheet (SDS or MSDS)
Declaration of Conformity (Sustainability)
Certificates (MSDS)
Declaration of Conformity

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Back-UPS Pro APC Back-UPS Pro 900VA/540W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Item Number: BR900MI

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

Product Brochures

End of Life Manual

Environmental Disclosure

Operating Manuals

Safety Data Sheet (SDS or MSDS)

Declaration of Conformity (Sustainability)

Certificates (MSDS)

Declaration of Conformity

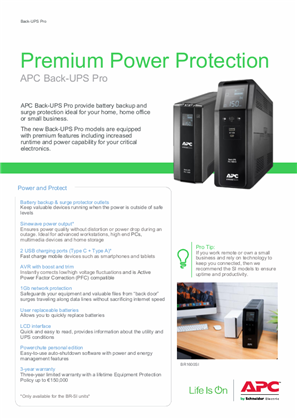

APC Back-UPS Pro Brochure

End of Life instructions for BACK UPS _EN

Product Environmental Profile for BACK UPS _EN

Important UPS Safety Information SAVE THIS GUIDE

BACK-UPS PRO BR650/900/1300/1600MI

SDS_All_LeadAcid_Batteries

China_RoHS-Electronics

BR900MI EU RoHS Directive

BR900MI EU RoHS Directive

BR900MI EU RoHS Directive

BR900MI EU RoHS Directive

BR900MI EU RoHS Directive

BR900MI EU RoHS Directive

BR900MI REACh Regulation

BR900MI REACh Regulation

BR900MI REACh Regulation

BR900MI REACh Regulation

BR900MI REACh Regulation

BR900MI REACh Regulation

CB Test Approval for Back UPS PRO

CE EMC per EN IEC 62040-2:2018

Telepermit certificate for Back UPS PRO

EAC certificate for BackUPS

EU Declaration of Conformity-992-9161

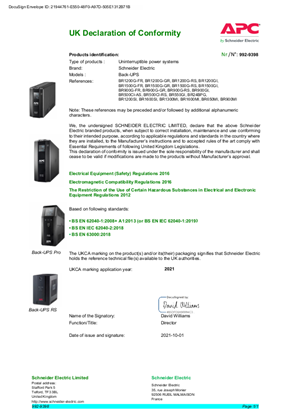

UK Declaration of Conformity
