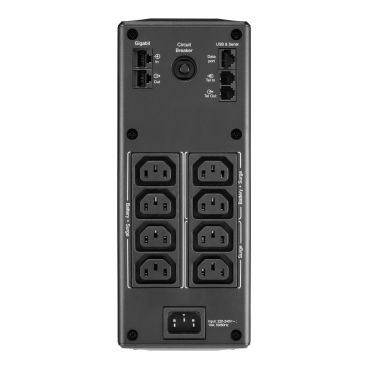

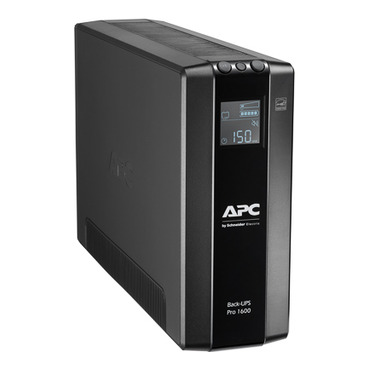

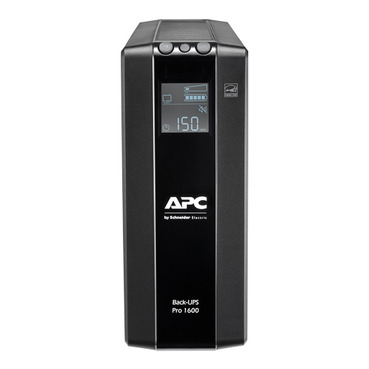

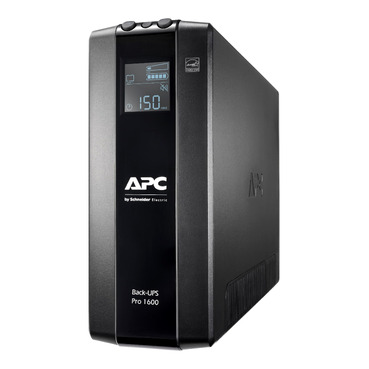

Back-UPS Pro APC Back-UPS Pro 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Item Number: BR1600MI

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width250 mm

Height100 mm

Depth382 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304346913	-

Specifications

Design

Range of product	Back-UPS Pro
Product or component type	uninterruptible power supply (UPS)
Warranty	2 years repair or replace, 3 years repair or replace for European Union countries

Physical

Rated power in w	960 W
Height	100 mm
Width	250 mm
Depth	382 mm
Net weight	10.9 kg
Mounting mode	not rack-mountable
Mounting mode	tower
Product certifications	A-Tick C-Tick CE EAC RCM TISI
Marking	GS Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Ambient air temperature for storage	-15...45 °C
Relative humidity	0...95 % non-condensing
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1712010EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
	At least in Europe
Warranty duration(in months) bmecat	24
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Main input voltage	230 V AC 1 phase
Switching current capacity	10 A
Input voltage limits	176...294 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Rated power in va	1600 VA
Type of usb power supply	none
Battery capacity	9.0 Ah
Battery type	lead-acid internal included
Control panel	multifunction LCD status and control console
Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Ups connectivity	USB port
Usb compatible	Yes
Graph display	1
Storage altitude	0...50000 ft
Storage relative humidity	0...95 % non-condensing
Acoustic level	45 dBA
Heat dissipation	21.5 Btu/h
Operating altitude	0...10000 ft
Battery type	lead-acid battery
Battery voltage	24 V
Number of battery replacement quantity	1
Battery life	3...5 year(s)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	33 cm
Package 1 width	22.5 cm
Package 1 length	48.5 cm
Package 1 weight	11.65 kg
Scc14	10731304346910
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	415 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	111.62818181818182
Carbon footprint of the manufacturing phase [a1 to a3]	112 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.2031272727272726
Carbon footprint of the distribution phase [a4]	1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	300.7818181818182
Carbon footprint of the use phase [b2, b3, b4, b6]	301 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.0612090909090908
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Energy efficiency optimized	Energy efficient product
F-gas free	N/A
Take-back	Yes
Product contributes to saved and avoided emissions	No
Removable battery	User replaceable
Total lifecycle carbon footprint	415.1636363636364
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	019b51cf-d7f1-4f06-ac85-1378fc94c7aa
Energy efficiency optimized	Energy efficient product
End of life manual availability	ENVEOLI1712010_EN
Removable battery	User replaceable
Take-back	Yes
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	24

Show all specifications

Documents & downloads

All
Product Brochures
End of Life Manual
Environmental Disclosure
Operating Manuals
Declaration of Conformity (Sustainability)
Declaration of Conformity
Certificates (MSDS)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

APC Back-UPS Pro Brochure

VERSION

1.0

DATE

14 Mar 2024

REVISION

1.0

DOWNLOAD (ZIP) 744.8 KB

ZIP

End of Life instructions for BACK UPS _EN

VERSION

1.0

DATE

16 Apr 2026

REVISION

1.0

DOWNLOAD (ZIP) 458.8 KB

ZIP

Product Environmental Profile for BACK UPS _EN

VERSION

1.0

DATE

16 Apr 2026

REVISION

1.0

DOWNLOAD (ZIP) 969.8 KB

ZIP

Important UPS Safety Information SAVE THIS GUIDE

VERSION

3.0

DATE

26 Feb 2026

REVISION

3.0

DOWNLOAD (ZIP) 196.1 KB

ZIP

BACK-UPS PRO BR650/900/1300/1600MI

VERSION

3.1

DATE

25 Feb 2026

REVISION

3.1

DOWNLOAD (ZIP) 420.7 KB

ZIP

China_RoHS-Electronics

VERSION

1.0

DATE

12 Jan 2026

REVISION

1.0

DOWNLOAD (ZIP) 124.6 KB

ZIP

BR1600MI EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

BR1600MI EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

BR1600MI EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

BR1600MI EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

BR1600MI REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

BR1600MI REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

BR1600MI REACh Regulation

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 824.7 KB

Colour ()

Back-UPS Pro APC Back-UPS Pro 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Item Number: BR1600MI

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

Product Brochures

End of Life Manual

Environmental Disclosure

Operating Manuals

Declaration of Conformity (Sustainability)

Declaration of Conformity

Certificates (MSDS)

APC Back-UPS Pro Brochure

End of Life instructions for BACK UPS _EN

Product Environmental Profile for BACK UPS _EN

Important UPS Safety Information SAVE THIS GUIDE

BACK-UPS PRO BR650/900/1300/1600MI

China_RoHS-Electronics

BR1600MI EU RoHS Directive

BR1600MI EU RoHS Directive

BR1600MI EU RoHS Directive

BR1600MI EU RoHS Directive

BR1600MI REACh Regulation

BR1600MI REACh Regulation

BR1600MI REACh Regulation

BR1600MI REACh Regulation

EU Declaration of Conformity-992-9161

UK Declaration of Conformity

EU DOC for BR series

UKCA Declaration of Conformity 992-9398

Telepermit certificate for Back UPS PRO

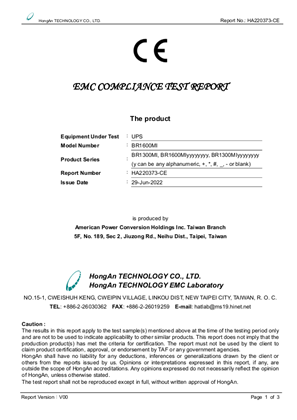

CE EMC BR 1600 1300 MI

EAC certificate for BackUPS

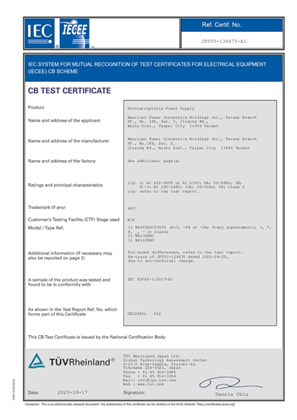

CB Test Approval for Power-Saving Back-UPS Pro 900, 1300, 1600 230V
