Back-UPS Pro APC Back-UPS Pro 1500VA/865W, Tower, 230V, 10x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Home ProductsNetwork ConnectivityUPSAPC Back-UPS Pro

Back-UPS Pro APC Back-UPS Pro 1500VA/865W, Tower, 230V, 10x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Item Number: BR1500GI

This product is part of the Back-UPS Pro range. This 1500VA battery backup UPS has 12 total outlets. It features a built-in AVR and a LCD interface with audible alarms. Its dimensions are 30.1 x 11.2 x 38 cm and 12.7 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width112 mm

Height icon

Height301 mm

Depth icon

Depth380 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Range of product

Back-UPS Pro

Warranty

2 years repair or replace, 3 years repair or replace for European Union countries

Physical

Rated power in w

865 W

Number of cables

1

Provided equipment

  • 1 , detachable IEC power cord
  • telephone cable
  • user manual
  • USB cable

Height

301 mm

Width

112 mm

Depth

380 mm

Net weight

12.7 kg

Mounting mode

not rack-mountable

Product certifications

  • A-Tick
  • C-Tick
  • CE
  • GOST
  • Telepermit
  • TÜV

Marking

GS Mark

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 %

Ambient air temperature for storage

-15...45 °C

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1712010_EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Package 2 bare product quantity

24

Average percentage of recycled plastic content

0 %

At least in Europe

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Lead time

Usually in Stock

Main input voltage

230 V

Rated power in va

1500 VA

Battery type

lead-acid battery

Performance multiplier

1

Value multiplier

1

Usb compatible

No

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

  • 156...300 V adjustable
  • 176...294 V

Switching current capacity

10 A

Crest factor

3 : 1

Graph display

1

Operating altitude

0...30000 ft

Storage relative humidity

0...95 %

Storage altitude

0...50000 ft

Acoustic level

45 dBA

Battery voltage

24 V

Battery capacity

9.0 Ah

Battery life

3...5 year(s)

Control panel

multifunction LCD status and control console

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

40.000 cm

Package 1 width

25.000 cm

Package 1 length

49.000 cm

Package 1 weight

14.000 kg

Unit type of package 2

PAM

Number of units in package 2

24

Package 2 height

132.000 cm

Package 2 width

100.000 cm

Package 2 length

120.000 cm

Package 2 weight

351.000 kg

Scc14

10731304268748

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

Energy efficient product

F-gas free

N/A

Take-back

Yes

Product contributes to saved and avoided emissions

No

Removable battery

User replaceable

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

019b51cf-d7f1-4f06-ac85-1378fc94c7aa

Energy efficiency optimized

Energy efficient product

End of life manual availability

ENVEOLI1712010_EN

Removable battery

User replaceable

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

24
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Technical Data Catalogues

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

  • Warranty

  • Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.
BR1200GI, BR1500GI Specification Sheet
ZIP

BR1200GI, BR1500GI Specification Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 83.6 KB

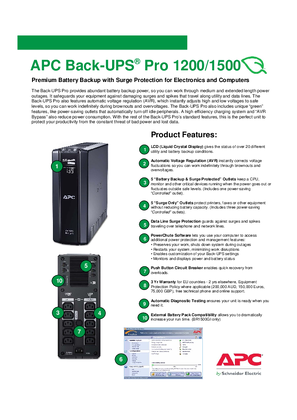

Back-UPS Pro BR1200GI and BR1500GI Specification Sheet
ZIP

Back-UPS Pro BR1200GI and BR1500GI Specification Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 93 KB

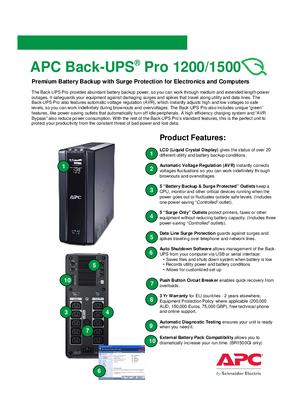

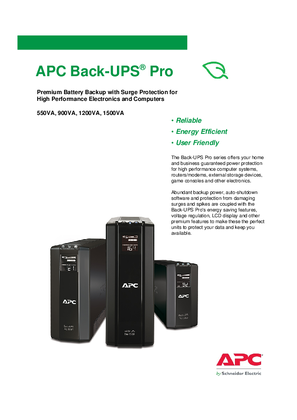

Back-UPS Pro Family Specification Sheet (230 volt/IEC-320 units)
ZIP

Back-UPS Pro Family Specification Sheet (230 volt/IEC-320 units)

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 395.1 KB
Product Environmental Profile for BACK UPS _EN
ZIP

Product Environmental Profile for BACK UPS _EN

VERSION

1.0

DATE

02 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 969.8 KB
End of Life instructions for BACK UPS _EN
ZIP

End of Life instructions for BACK UPS _EN

VERSION

1.0

DATE

02 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 458.8 KB
Important UPS Safety Information SAVE THIS GUIDE
ZIP

Important UPS Safety Information SAVE THIS GUIDE

VERSION

3.0

DATE

23 May 2025

REVISION

3.0

DOWNLOAD (ZIP) 196.1 KB

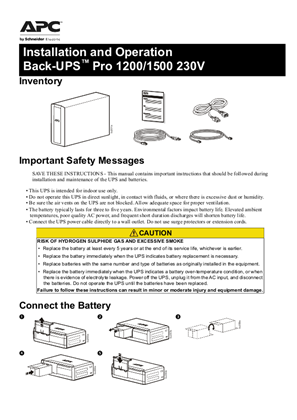

Back-UPS Pro 1200GI & 1500GI
ZIP

Back-UPS Pro 1200GI & 1500GI

VERSION

3.0

DATE

14 Aug 2022

REVISION

3.0

DOWNLOAD (ZIP) 388.3 KB
Addendum Back-UPS 550/700/900/1200/1500 VA - RCM
ZIP

Addendum Back-UPS 550/700/900/1200/1500 VA - RCM

VERSION

1.0

DATE

04 Jul 2022

REVISION

1.0

DOWNLOAD (ZIP) 90.8 KB

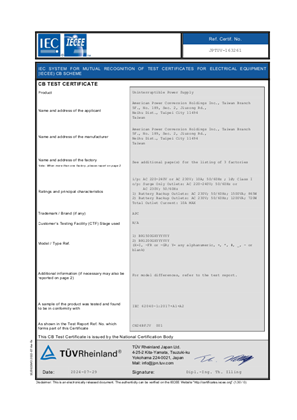

CB Certificate BR 1500 1200 G 230V
ZIP

CB Certificate BR 1500 1200 G 230V

VERSION

1.0

DATE

29 Jul 2024

REVISION

1.0

DOWNLOAD (ZIP) 80.1 KB

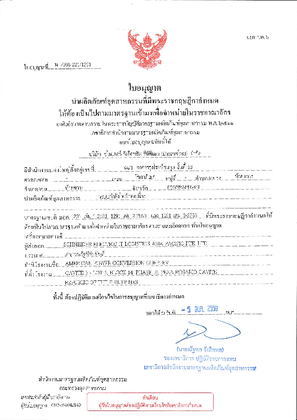

TISI certificate for Line Interactive UPS
ZIP

TISI certificate for Line Interactive UPS

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 401.3 KB
UPS out of scope of China CCC Compulsory Certification (English)
ZIP

UPS out of scope of China CCC Compulsory Certification (English)

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 338.3 KB
EAC certificate for BackUPS
ZIP

EAC certificate for BackUPS

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 519.4 KB
UPS out of scope of China CCC Compulsory Certification (Chinese)
ZIP

UPS out of scope of China CCC Compulsory Certification (Chinese)

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 325.7 KB

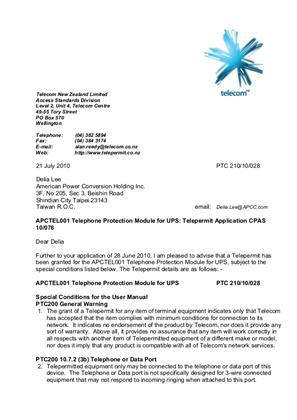

Phone Protection Module (APCTEL001) used in UPS Pro 1200/1500 230V granted New Zealand approval
ZIP

Phone Protection Module (APCTEL001) used in UPS Pro 1200/1500 230V granted New Zealand approval

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 39.4 KB

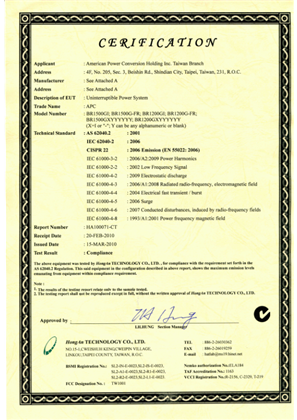

Australia EMC Test Approval for Power-Saving Back-UPS 1200/1500VA 230V
ZIP

Australia EMC Test Approval for Power-Saving Back-UPS 1200/1500VA 230V

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 1.2 MB

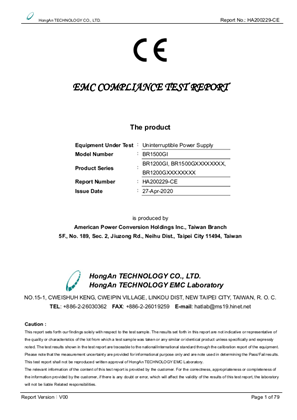

EMC Test Approval for Power-Saving Back-UPS 1200/1500VA 230V
ZIP

EMC Test Approval for Power-Saving Back-UPS 1200/1500VA 230V

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 167.3 KB

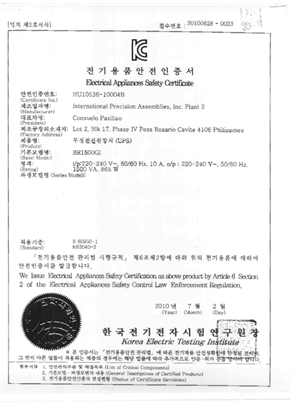

Power Saving Back-UPS Pro 1500 230V granted Korea KC approval
