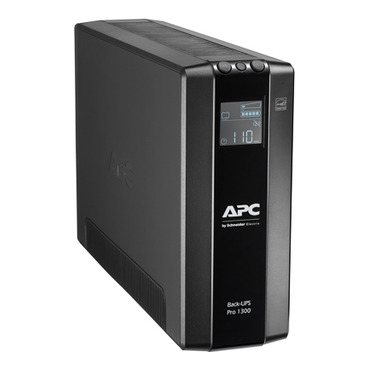

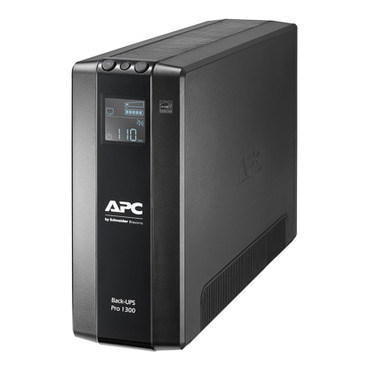

Back-UPS Pro APC Back-UPS Pro 1300VA/780W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Item Number: BR1300MI

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width250 mm

Height100 mm

Depth382 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304346906	-

Specifications

Design

Range of product	Back-UPS Pro
Product or component type	uninterruptible power supply (UPS)
Warranty	2 years repair or replace, 3 years repair or replace for European Union countries

Physical

Rated power in w	780 W
Height	100 mm
Width	250 mm
Depth	382 mm
Net weight	10.2 kg
Mounting mode	not rack-mountable
Mounting mode	tower
Product certifications	A-Tick C-Tick CE EAC RCM TISI
Marking	GS Mark
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Ambient air temperature for storage	-15...45 °C
Relative humidity	0...95 % non-condensing
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1712010EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Legacy weee scope	In
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
	At least in Europe
Warranty duration(in months) bmecat	24
Main input voltage	230 V AC 1 phase
Switching current capacity	10 A
Input voltage limits	176...294 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Rated power in va	1300 VA
Type of usb power supply	none
Battery capacity	6.0 Ah
Battery type	lead-acid internal included
Control panel	multifunction LCD status and control console
Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Ups connectivity	USB port
Usb compatible	Yes
Graph display	1
Storage altitude	0...50000 ft
Storage relative humidity	0...95 % non-condensing
Acoustic level	45 dBA
Heat dissipation	21.5 Btu/h
Operating altitude	0...10000 ft
Battery type	lead-acid battery
Battery voltage	24 V
Number of battery replacement quantity	1
Battery life	3...5 year(s)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	33 cm
Package 1 width	22.5 cm
Package 1 length	48.5 cm
Package 1 weight	11.85 kg
Scc14	10731304346903
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	422 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	113.54454545454546
Carbon footprint of the manufacturing phase [a1 to a3]	114 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.223781818181818
Carbon footprint of the distribution phase [a4]	1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	305.94545454545454
Carbon footprint of the use phase [b2, b3, b4, b6]	306 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.079427272727273
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Energy efficiency optimized	Energy efficient product
F-gas free	N/A
Take-back	Yes
Product contributes to saved and avoided emissions	No
Removable battery	User replaceable
Total lifecycle carbon footprint	422.2909090909091
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	019b51cf-d7f1-4f06-ac85-1378fc94c7aa
Energy efficiency optimized	Energy efficient product
End of life manual availability	ENVEOLI1712010_EN
Removable battery	User replaceable
Take-back	Yes
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	24
