Back-UPS APC Back-UPS 650VA, Tower, 230V, 4 IEC C13 Outlets , User Replaceable Battery

Item Number: BK650EI

1 PCE 0

This product is part of the Back-UPS range. The BK650EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 35 minutes. It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.03 kg The BK650EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.

Where To Buy

Datasheet

Download

Product Dimensions

Width91 mm

Height165 mm

Depth284 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304219781	-

Specifications

Design

Range of product	Back-UPS
Product or component type	uninterruptible power supply (UPS)
Warranty	2 years repair or replace

Physical

Rated power in w	400 W
Number of cables	2
Height	165 mm
Width	91 mm
Depth	284 mm
Net weight	6.03 kg
Mounting mode	not rack-mountable
Mounting mode	tower
Provided equipment	CD with software documentation CD 2 x detachable IEC C13 to IEC C14 power cords USB cable
Product certifications	RCM CE GOST NEMKO
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Ambient air temperature for storage	-15...45 °C
Relative humidity	5...95 %
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1712010EN
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	35
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	24
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Main input voltage	230 V AC 1 phase
Switching current capacity	7 A
Input voltage limits	160...286 V adjustable 180...266 V
Network frequency	47...63 Hz 50/60 Hz +/- 3 Hz auto-sensing
Rated power in va	650 VA
Type of usb power supply	none
Battery capacity	9.0 Ah
Battery type	lead-acid internal included
Control panel	LED Status display with on line : on battery
Control panel	LED status display with on line : on battery : replace battery and overload indicators
Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Ups connectivity	USB port
Mounting location	front
Usb compatible	Yes
Performance multiplier	1
Value multiplier	1
Graph display	1
Storage altitude	0...50000 ft
Storage relative humidity	5...95 %
Acoustic level	45 dBA
Operating altitude	0...10000 ft
Battery type	lead-acid battery
Battery voltage	12 V
Number of battery replacement quantity	1
Battery life	4...6 year(s)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	49.400 cm
Package 1 width	18.500 cm
Package 1 length	41.500 cm
Package 1 weight	7.300 kg
Unit type of package 2	PAM
Number of units in package 2	35
Package 2 height	132.500 cm
Package 2 width	100.000 cm
Package 2 length	120.000 cm
Package 2 weight	267.850 kg
Scc14	10731304219788
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	261 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	70.0430909090909
Carbon footprint of the manufacturing phase [a1 to a3]	70 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.7549236363636364
Carbon footprint of the distribution phase [a4]	0.8 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	188.73090909090908
Carbon footprint of the use phase [b2, b3, b4, b6]	189 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6658745454545455
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Energy efficiency optimized	Energy efficient product
F-gas free	N/A
Take-back	Yes
Product contributes to saved and avoided emissions	No
Removable battery	User replaceable
Total lifecycle carbon footprint	260.5018181818182
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Scip number	019b51cf-d7f1-4f06-ac85-1378fc94c7aa
Energy efficiency optimized	Energy efficient product
End of life manual availability	ENVEOLI1712010_EN
Removable battery	User replaceable
Take-back	Yes
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	24 UPS 24 Battery

Show all specifications

Documents & downloads

All
Product Brochures
Installation Instruction
End of Life Manual
Environmental Disclosure
Operating Manuals
Safety Data Sheet (SDS or MSDS)
Declaration of Conformity (Sustainability)
Certificates (MSDS)
Warranty
Declaration of Conformity
Software - Release

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Back-UPS APC Back-UPS 650VA, Tower, 230V, 4 IEC C13 Outlets , User Replaceable Battery

Item Number: BK650EI

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

Product Brochures

Installation Instruction

End of Life Manual

Environmental Disclosure

Operating Manuals

Safety Data Sheet (SDS or MSDS)

Declaration of Conformity (Sustainability)

Certificates (MSDS)

Warranty

Declaration of Conformity

Software - Release

Back-UPS BK350EI, BK500EI, BK650EI Specification Sheet

APC Smart-UPS and Back-UPS - Safety Guide

End of Life instructions for BACK UPS _EN

Product Environmental Profile for BACK UPS _EN

SAFETY GUIDE for Back-UPS SAVE THESE INSTRUCTIONS

Back-UPS™ CS350/CS500/CS650 - User Manual

Back-UPS - Safety and General Information - CS - 350/500/650 - User Manual

SDS_All_LeadAcid_Batteries

PRODUCT SAFETY DATA SHEET of All rechargeable lead acid RBC and Battery Pack_EU

China_RoHS-Electronics

BK650EI EU RoHS Directive

BK650EI EU RoHS Directive

BK650EI EU RoHS Directive

BK650EI EU RoHS Directive

BK650EI REACh Regulation

BK650EI REACh Regulation

BK650EI REACh Regulation

BK650EI REACh Regulation

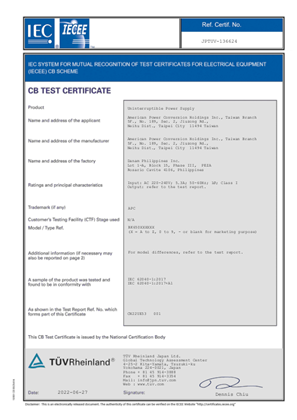

CB certificate for BK650 series

EAC certificate for BackUPS

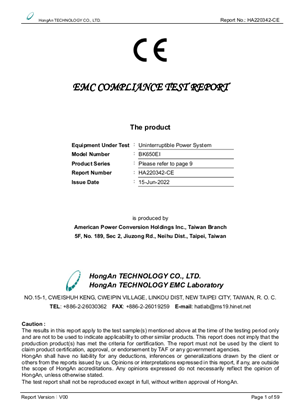

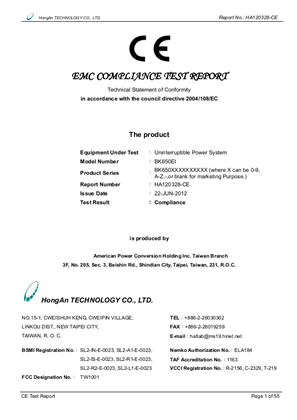

EMC per EN 62040-2:2006

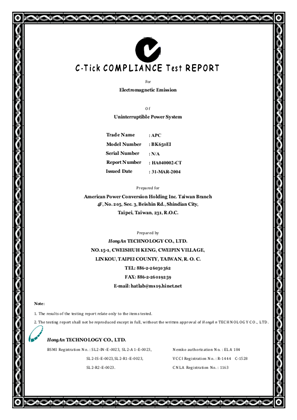

CTick Certificate of Approval for BK650EI
