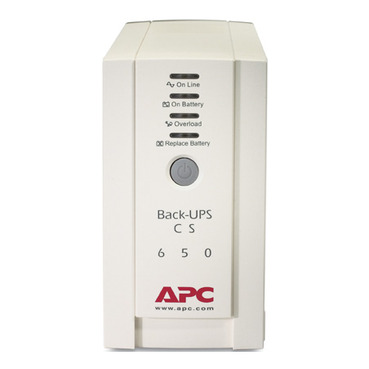

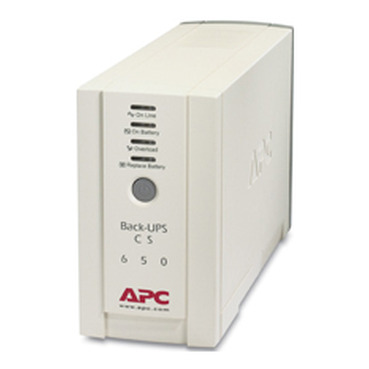

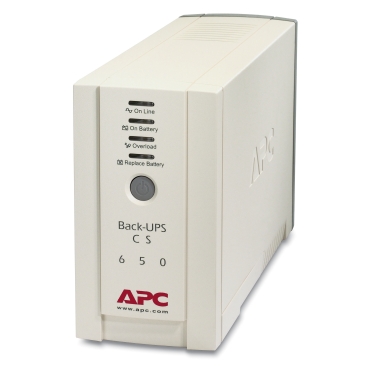

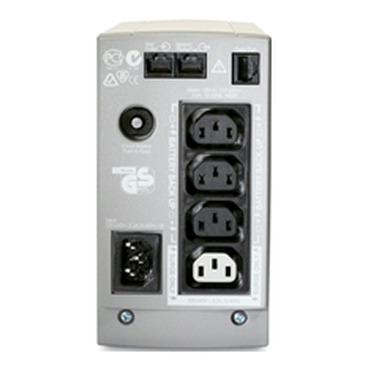

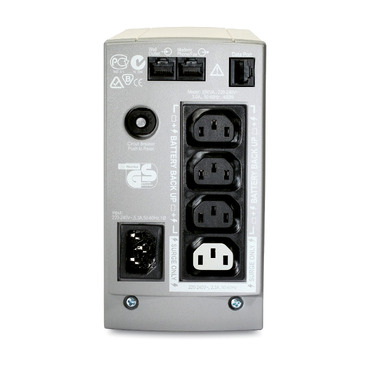

Back-UPS APC Back-UPS 650VA, Tower, 230V, 4 IEC C13 Outlets , User Replaceable Battery

Item Number: BK650-AS

1 PCE 0

This product is part of the Back-UPS range. The BK650-AS features a total of 4 power outlets, one of which is surge only. Its runtime at 100W is 35 minutes. It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.04 kg The BK650-AS ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.

Where To Buy

Datasheet

Download

Product Dimensions

Width91 mm

Height165 mm

Depth284 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304224433	-

Specifications

Design

Range of product	Back-UPS
Product or component type	uninterruptible power supply (UPS)
Warranty	2 years repair or replace

Physical

Rated power in w	400 W
Number of cables	2
Height	165 mm
Width	91 mm
Depth	284 mm
Net weight	6.04 kg
Mounting mode	not rack-mountable
Mounting mode	tower
Provided equipment	CD with software documentation CD 1 x detachable 1.2 m IEC power cord 1 x detachable 1.8 m IEC power cord telephone cable USB cable warranty card
Product certifications	RCM CE GOST NEMKO
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018
Ambient air temperature for operation	0...40 °C
Ambient air temperature for storage	-15...45 °C
Relative humidity	5...95 %
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1712010EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
Eu rohs directive	Compliant By Exemption

Others

Life cycle assessment data	Yes
Substance regulation data deliverable	Yes
Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
	At least in Europe
Warranty duration(in months) bmecat	24
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Main input voltage	230 V AC 1 phase
Input voltage limits	160...282 V adjustable 180...260 V
Network frequency	50/60 Hz +/- 3 Hz auto-sensing
Rated power in va	650 VA
Type of usb power supply	none
Battery type	lead-acid internal included
Control panel	LED Status display with on line : on battery
Control panel	LED status display with on line : on battery : replace battery and overload indicators
Alarm	alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Ups connectivity	USB port
Cable length	6 ft
Mounting location	front
Usb compatible	Yes
Performance multiplier	1
Value multiplier	1
Graph display	1
Storage altitude	0...15000 ft
Storage relative humidity	5...95 %
Acoustic level	45 dBA
Heat dissipation	0 Btu/h
Operating altitude	0...30000 ft
Battery type	lead-acid battery
Number of battery replacement quantity	1
Battery life	4...6 year(s)
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	49.4 cm
Package 1 width	41.5 cm
Package 1 length	18.5 cm
Package 1 weight	7.32 kg
Scc14	10731304224430
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	261 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	70.1389090909091
Carbon footprint of the manufacturing phase [a1 to a3]	70 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.7559563636363635
Carbon footprint of the distribution phase [a4]	0.8 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	188.98909090909092
Carbon footprint of the use phase [b2, b3, b4, b6]	189 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6667854545454546
Carbon footprint of the end-of-life phase [c1 to c4]	0.7 kg CO2 eq.
Energy efficiency optimized	Energy efficient product
F-gas free	N/A
Take-back	Yes
Product contributes to saved and avoided emissions	No
Removable battery	User replaceable
Total lifecycle carbon footprint	260.85818181818183
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Energy efficiency optimized	Energy efficient product
End of life manual availability	ENVEOLI1712010_EN
Removable battery	User replaceable
Take-back	Yes
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	24 UPS 12 Battery

Show all specifications

Documents & downloads

All
End of Life Manual
Environmental Disclosure
Operating Manuals
Declaration of Conformity (Sustainability)
Certificates (MSDS)
Declaration of Conformity
Warranty
Software - Release

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Back-UPS APC Back-UPS 650VA, Tower, 230V, 4 IEC C13 Outlets , User Replaceable Battery

Item Number: BK650-AS

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Documents & downloads

All

End of Life Manual

Environmental Disclosure

Operating Manuals

Declaration of Conformity (Sustainability)

Certificates (MSDS)

Declaration of Conformity

Warranty

Software - Release

End of Life instructions for BACK UPS _EN

Product Environmental Profile for BACK UPS _EN

SAFETY GUIDE for Back-UPS SAVE THESE INSTRUCTIONS

Back-UPS CS 230 V (Manual)

Back-UPS 350/500/650EI Series

China_RoHS-Electronics

BK650-AS EU RoHS Directive

BK650-AS EU RoHS Directive

BK650-AS EU RoHS Directive

BK650-AS EU RoHS Directive

BK650-AS REACh Regulation

BK650-AS REACh Regulation

BK650-AS REACh Regulation

BK650-AS REACh Regulation

CB certificate for BK650 series

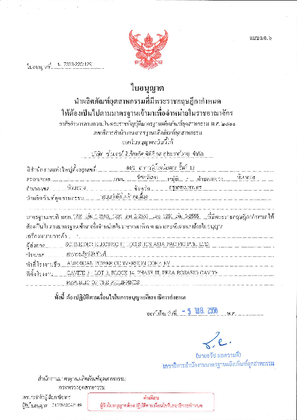

TISI certificate for Line Interactive UPS

UPS out of scope of China CCC Compulsory Certification (English)

UPS out of scope of China CCC Compulsory Certification (Chinese)

EMC per EN 62040-2:2006

CTick Certificate of Approval for BK650EI

EMC per EN IEC 62040-2:2018

UKCA_DoC_992-9401

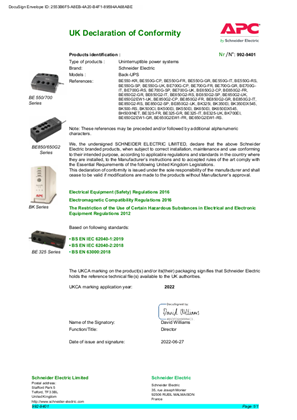

EU Declaration of Conformity-992-006A
