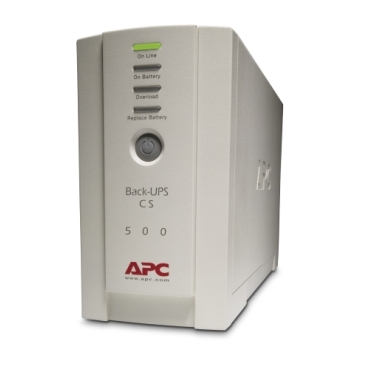

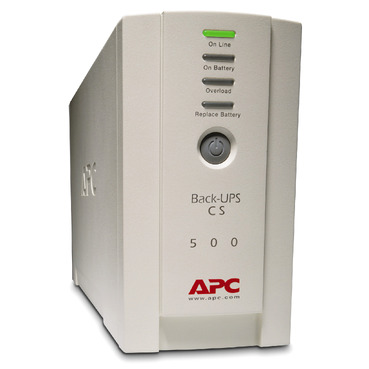

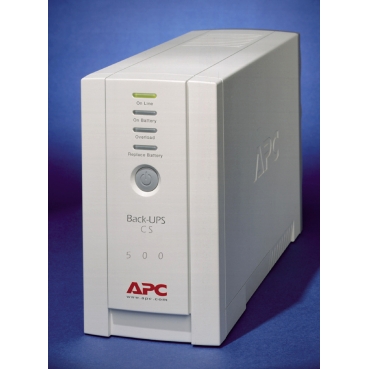

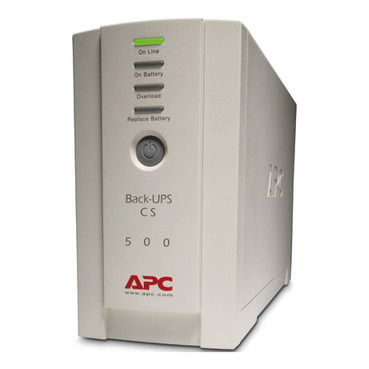

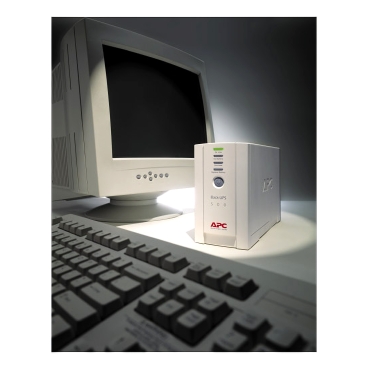

Back-UPS APC Back-UPS 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery

Item Number: BK500EI

1 PCE 0

This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.

Where To Buy

Datasheet

Download

Product Dimensions

Width91 mm

Height165 mm

Depth284 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	731304016359	-

Specifications

Design

Range of product

Back-UPS

Product or component type

uninterruptible power supply (UPS)

Warranty

2 years repair or replace

Physical

Rated power in w

300 W

Number of cables

Height

165 mm

Width

91 mm

Depth

284 mm

Net weight

6.32 kg

Mounting mode

not rack-mountable

Mounting mode

tower

Provided equipment

CD with software
documentation CD
1 x detachable IEC power cord
1 x detachable 1.2 m IEC power cord
telephone cable
USB cable
warranty card

Product certifications

C-Tick
CE
GOST
VDE

Standards

EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Ambient air temperature for storage

-15...45 °C

Relative humidity

0...95 %

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1712010EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope

Eu rohs directive

Compliant By Exemption

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

Package 1 bare product quantity

Package 2 bare product quantity

Average percentage of recycled plastic content

0 %

At least in Europe

Warranty duration(in months) bmecat

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Lead time

Usually in Stock

Main input voltage

230 V AC 1 phase

Switching current capacity

7 A

Input voltage limits

160...300 V adjustable
180...266 V

Network frequency

47...63 Hz
50/60 Hz +/- 3 Hz auto-sensing

Rated power in va

500 VA

Type of usb power supply

none

Battery capacity

7.0 Ah

Battery type

lead-acid internal included

Control panel

LED Status display with on line : on battery

Free slots

Control panel

LED status display with on line : on battery : replace battery and overload indicators

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Ups connectivity

USB port

Mounting location

front

Usb compatible

Yes

Performance multiplier

Value multiplier

Graph display

Storage altitude

0...50000 ft

Storage relative humidity

0...95 %

Acoustic level

40 dBA

Heat dissipation

24 Btu/h

Operating altitude

0...10000 ft

Battery type

lead-acid battery

Battery voltage

12 V

Number of battery replacement quantity

Battery life

4...6 year(s)

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

17.800 cm

Package 1 width

24.100 cm

Package 1 length

36.800 cm

Package 1 weight

7.050 kg

Unit type of package 2

P12

Number of units in package 2

Package 2 height

105.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

490.000 kg

Scc14

10731304016356

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

251 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

67.55181818181818

Carbon footprint of the manufacturing phase [a1 to a3]

68 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.7280727272727272

Carbon footprint of the distribution phase [a4]

0.7 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

182.01818181818183

Carbon footprint of the use phase [b2, b3, b4, b6]

182 kg CO2 eq.

Sustainable packaging

Carbon footprint of the end-of-life phase [c1 to c4]

0.6421909090909091

Carbon footprint of the end-of-life phase [c1 to c4]

0.6 kg CO2 eq.

Energy efficiency optimized

Energy efficient product

F-gas free

N/A

Take-back

Yes

Product contributes to saved and avoided emissions

Removable battery

User replaceable

Total lifecycle carbon footprint

251.23636363636365

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Scip number

019b51cf-d7f1-4f06-ac85-1378fc94c7aa

Energy efficiency optimized

Energy efficient product

End of life manual availability

ENVEOLI1712010_EN

Removable battery

User replaceable

Take-back

Yes

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

24 Battery
24 UPS

Show all specifications

Documents & downloads

All
Product Brochures
Environmental Disclosure
End of Life Manual
Operating Manuals
Safety Data Sheet (SDS or MSDS)
Declaration of Conformity (Sustainability)
Warranty
Declaration of Conformity
Certificates (MSDS)
Software - Release

Important: Some software files may need a mySchneider or Club login to download.

Colour ()

Back-UPS APC Back-UPS 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery

Item Number: BK500EI

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

Product Brochures

Environmental Disclosure

End of Life Manual

Operating Manuals

Safety Data Sheet (SDS or MSDS)

Declaration of Conformity (Sustainability)

Warranty

Declaration of Conformity

Certificates (MSDS)

Software - Release

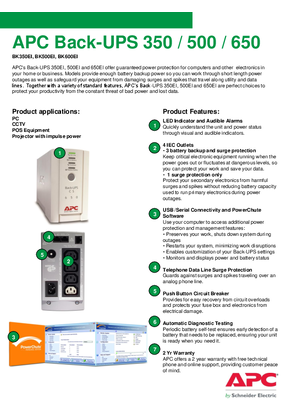

Back-UPS BK350EI, BK500EI, BK650EI Specification Sheet

Product Environmental Profile for BACK UPS _EN

End of Life instructions for BACK UPS _EN

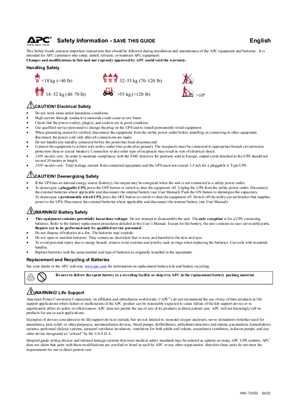

SAFETY GUIDE for Back-UPS SAVE THESE INSTRUCTIONS

Smart-UPS Safety Guide - Smart-UPS & Back-UPS (Sheet)

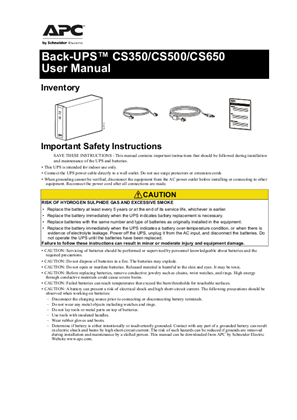

Back-UPS CS 230 V (Manual)

Back-UPS 350/500/650EI Series

SDS_All_LeadAcid_Batteries

Valve Regulated Lead-Acid (VRLA) Industrial Battery (with Regulation (EU) 2020/878) - Safety Data Sheet

China_RoHS-Electronics

BK500EI China RoHS Declaration

BK500EI China RoHS Declaration

BK500EI China RoHS Declaration

BK500EI China RoHS Declaration

BK500EI China RoHS Declaration

BK500EI China RoHS Declaration

BK500EI EU RoHS Declaration

BK500EI EU RoHS Declaration

BK500EI EU RoHS Declaration

BK500EI EU RoHS Declaration

BK500EI EU RoHS Declaration

BK500EI EU RoHS Declaration

BK500EI REACh Declaration

BK500EI REACh Declaration

BK500EI REACh Declaration

BK500EI REACh Declaration

BK500EI REACh Declaration

BK500EI REACh Declaration

Consumer Guarantee- 2 Yrs for EU

Warranty for Australian Consumer Law

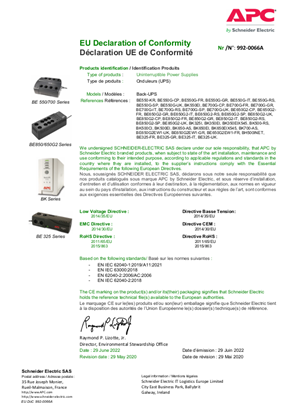

EU Declaration of Conformity-992-006A

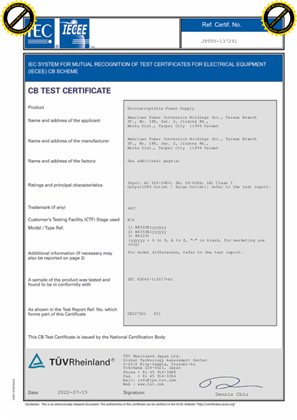

CB Certificate Back-UPS CS 500, 350, 325 230V

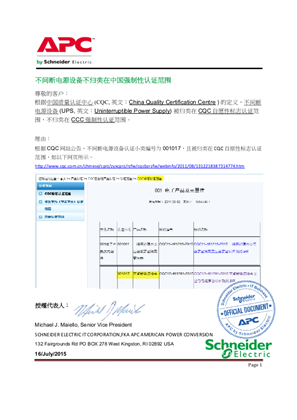

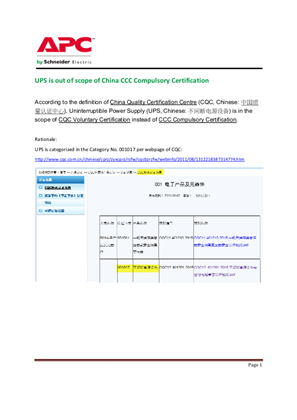

UPS out of scope of China CCC Compulsory Certification (English)

EAC certificate for BackUPS

UPS out of scope of China CCC Compulsory Certification (Chinese)

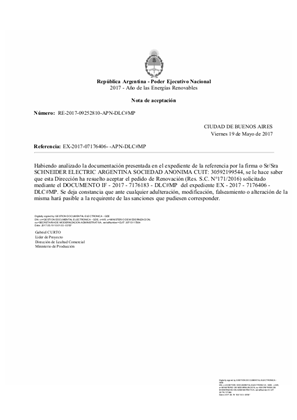

IRAM certificate for BK series

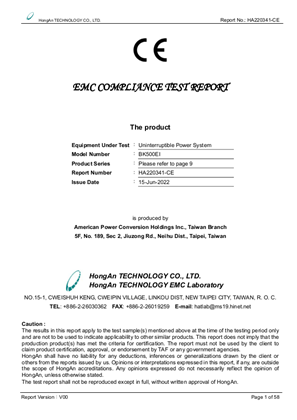

EMC Certificate in accordance with EN 62040-2:2006

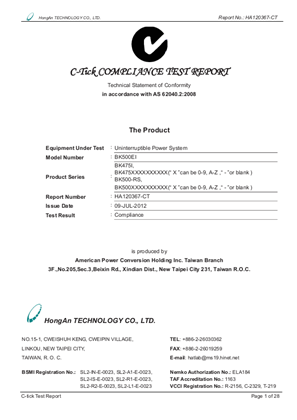

C-tick EMC BK500/325/325 230V
