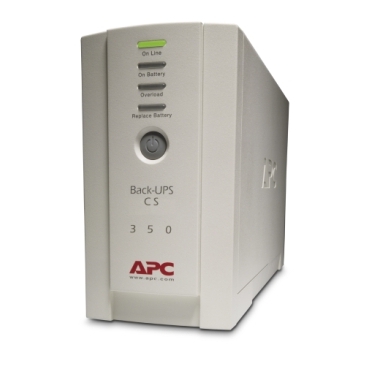

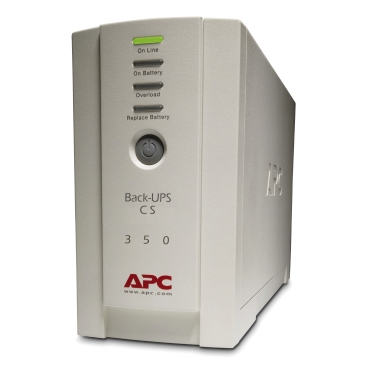

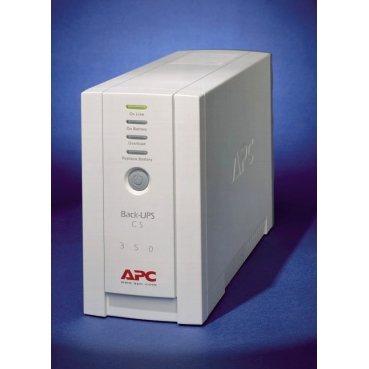

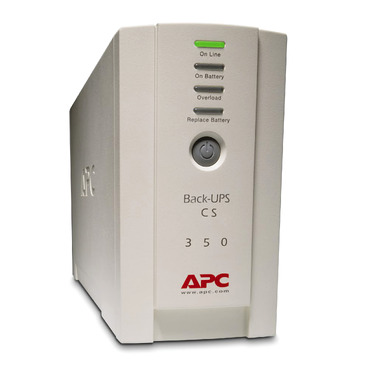

Back-UPS APC Back-UPS 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery

Home ProductsNetwork ConnectivityUPSAPC Back-UPS

Back-UPS APC Back-UPS 350VA/210W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery

Item Number: BK350EI

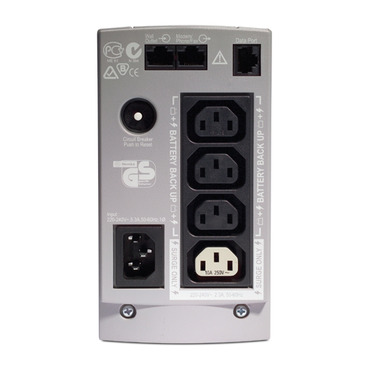

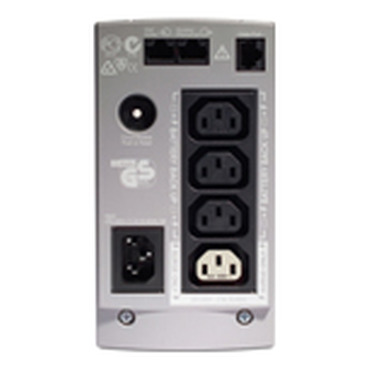

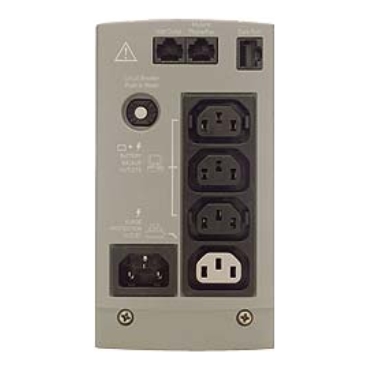

This product is part of the Back-UPS range. The BK350EI features a total of 6 power outlets, 5 of which are UPS battery backup and one that is surge only. Its runtime at 100W is 14 minutes 52 seconds. It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK350EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width91 mm

Height icon

Height165 mm

Depth icon

Depth284 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Range of product

Back-UPS

Warranty

2 years repair or replace

Physical

Rated power in w

210 W

Number of cables

2

Provided equipment

  • CD with software
  • documentation CD
  • installation manual in japanese
  • detachable IEC power cord
  • detachable 1.2 m IEC power cord
  • telephone cable
  • USB cable
  • warranty card

Height

165 mm

Width

91 mm

Depth

284 mm

Net weight

6.32 kg

Mounting mode

not rack-mountable

Product certifications

  • C-Tick
  • CE
  • GOST
  • VDE

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 %

Ambient air temperature for storage

-15...45 °C

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1712010_EN

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Package 1 bare product quantity

1

Package 2 bare product quantity

70

Legacy weee scope

In

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Average percentage of recycled plastic content

0 %

At least in Europe

Lead time

Usually in Stock

Main input voltage

230 V

Rated power in va

350 VA

Cable length

3.81 ft

Battery type

lead-acid battery

Performance multiplier

1

Value multiplier

1

Mounting location

front

Usb compatible

No

Network frequency

50/60 Hz +/- 3 Hz auto-sensing

Input voltage limits

180...266 V

Switching current capacity

7 A

Graph display

1

Operating altitude

0...10000 ft

Storage relative humidity

0...95 %

Storage altitude

0...50000 ft

Heat dissipation

19 Btu/h

Battery voltage

12 V

Battery capacity

7.0 Ah

Battery life

4...6 year(s)

Free slots

0

Control panel

LED status display with on line : on battery : replace battery and overload indicators

Alarm

alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Control panel

LED Status display with on line : on battery

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

24.000 cm

Package 1 width

19.000 cm

Package 1 length

41.500 cm

Package 1 weight

6.435 kg

Unit type of package 2

PAM

Number of units in package 2

70

Package 2 height

142.000 cm

Package 2 width

100.000 cm

Package 2 length

120.000 cm

Package 2 weight

492.450 kg

Scc14

10731304016349

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

Energy efficient product

F-gas free

N/A

Take-back

Yes

Product contributes to saved and avoided emissions

No

Removable battery

User replaceable

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

019b51cf-d7f1-4f06-ac85-1378fc94c7aa

Energy efficiency optimized

Energy efficient product

End of life manual availability

ENVEOLI1712010_EN

Removable battery

User replaceable

Take-back

Yes

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

  • 24 Battery
  • 24 UPS
Show all specifications

Documents & downloads

hide show
Filter items

  • All

  • Product Brochures

  • Environmental Disclosure

  • End of Life Manual

  • Operating Manuals

  • Warranty

  • Declaration of Conformity

  • Certificates (MSDS)

  • Declaration of Conformity (Sustainability)

  • Software - Release

Important: Some software files may need a mySchneider or Club login to download.
Back-UPS BK350EI, BK500EI, BK650EI Specification Sheet
ZIP

Back-UPS BK350EI, BK500EI, BK650EI Specification Sheet

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 200 KB
Product Environmental Profile for BACK UPS _EN
ZIP

Product Environmental Profile for BACK UPS _EN

VERSION

1.0

DATE

02 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 969.8 KB
End of Life instructions for BACK UPS _EN
ZIP

End of Life instructions for BACK UPS _EN

VERSION

1.0

DATE

02 Nov 2025

REVISION

1.0

DOWNLOAD (ZIP) 458.8 KB

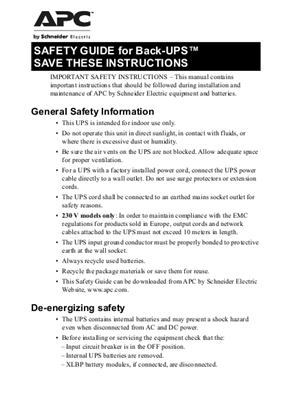

SAFETY GUIDE for Back-UPS SAVE THESE INSTRUCTIONS
ZIP

SAFETY GUIDE for Back-UPS SAVE THESE INSTRUCTIONS

VERSION

3.0

DATE

07 Jun 2025

REVISION

3.0

DOWNLOAD (ZIP) 144.4 KB
Smart-UPS Safety Guide - Smart-UPS & Back-UPS (Sheet)
ZIP

Smart-UPS Safety Guide - Smart-UPS & Back-UPS (Sheet)

VERSION

1.1

DATE

18 Dec 2024

REVISION

1.1

DOWNLOAD (ZIP) 191.3 KB
Back-UPS CS 230 V (Manual)
ZIP

Back-UPS CS 230 V (Manual)

VERSION

2.1

DATE

20 Aug 2022

REVISION

2.1

DOWNLOAD (ZIP) 343.8 KB

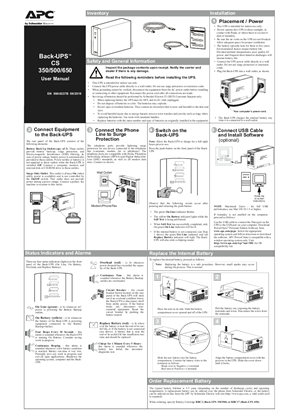

Back-UPS 350/500/650EI Series
ZIP

Back-UPS 350/500/650EI Series

VERSION

1.0

DATE

17 Aug 2022

REVISION

1.0

DOWNLOAD (ZIP) 4.1 MB

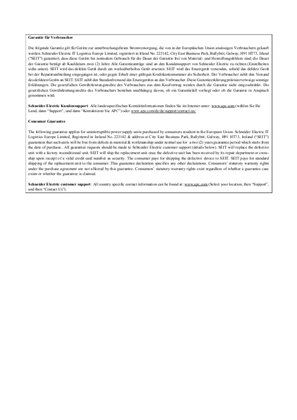

Consumer Guarantee- 2 Yrs for EU
ZIP

Consumer Guarantee- 2 Yrs for EU

VERSION

1.2

DATE

24 Feb 2024

REVISION

1.2

DOWNLOAD (ZIP) 88.1 KB
Warranty for Australian Consumer Law
ZIP

Warranty for Australian Consumer Law

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 33.5 KB
EU Declaration of Conformity-992-006A
ZIP

EU Declaration of Conformity-992-006A

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 644.4 KB
CB Certificate Back-UPS CS 500, 350, 325 230V
ZIP

CB Certificate Back-UPS CS 500, 350, 325 230V

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 413.8 KB

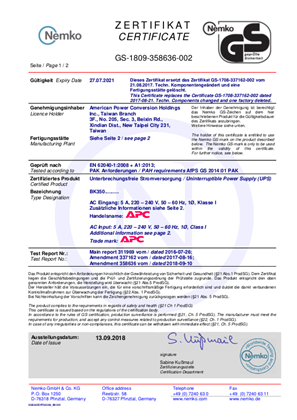

Nemko GS certificate Back-UPS 350, 230V
ZIP

Nemko GS certificate Back-UPS 350, 230V

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 198.2 KB
UPS out of scope of China CCC Compulsory Certification (English)
ZIP

UPS out of scope of China CCC Compulsory Certification (English)

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 338.3 KB

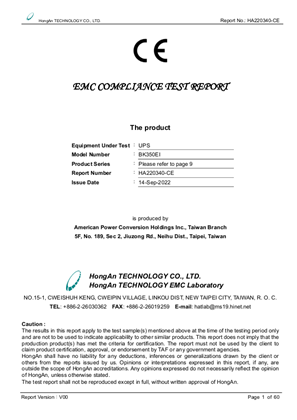

EMC Certificate of Approval for Back-UPS CS 325/350 VA 230 Volts
ZIP

EMC Certificate of Approval for Back-UPS CS 325/350 VA 230 Volts

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 156 KB
EAC certificate for BackUPS
ZIP

EAC certificate for BackUPS

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 519.4 KB
UPS out of scope of China CCC Compulsory Certification (Chinese)
ZIP

UPS out of scope of China CCC Compulsory Certification (Chinese)

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 325.7 KB

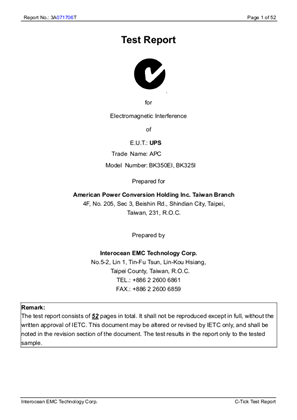

CTick Certificate of Compliance for BK325I and BK350EI
