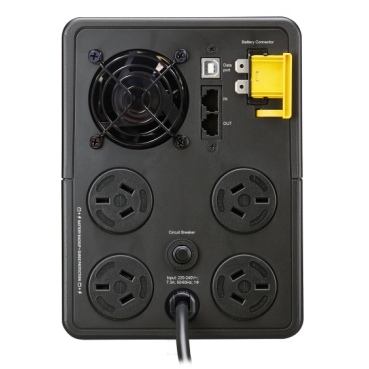

Back-UPS APC Back-UPS 1600VA, 230V, AVR, 4 Australian outlets

Home ProductsNetwork ConnectivityUPSAPC Back-UPS

Back-UPS APC Back-UPS 1600VA, 230V, AVR, 4 Australian outlets

Item Number: BX1600MI-AZ

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width140 mm

Height icon

Height190 mm

Depth icon

Depth390 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product or component type

uninterruptible power supply (UPS)

Range of product

Back-UPS

Warranty

2 years repair or replace

Physical

Rated power in w

900 W

Number of cables

1

Provided equipment

user manual

Height

190 mm

Width

140 mm

Depth

390 mm

Net weight

10.3 kg

Mounting mode

not rack-mountable

Product certifications

  • CE
  • CB
  • RCM

Standards

  • EN/IEC 62040-1:2019/A11:2021
  • EN/IEC 62040-2:2006/AC:2006
  • EN/IEC 62040-2:2018

Ambient air temperature for operation

0...40 °C

Relative humidity

0...95 % non-condensing

Ambient air temperature for storage

-15...40 °C

Ip degree of protection

IP20

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1712010_EN

Eu rohs directive

Compliant

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Life cycle assessment data

Yes

Substance regulation data deliverable

Yes

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Lead time

Usually in Stock

Main input voltage

230 V

Rated power in va

1600 VA

Cable length

4 ft

Battery type

lead-acid battery

Usb compatible

No

Network frequency

50/60 Hz +/- 5 Hz auto-sensing

Input voltage limits

140...300 V

Cos phi

0.56

Graph display

1

Operating altitude

0...3000 m

Storage relative humidity

0...95 % non-condensing

Storage altitude

0...3000 m

Acoustic level

40 dBA

Battery voltage

24 V

Battery life

3...5 year(s)

Control panel

LED Status display with on line : on battery

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

29.7 cm

Package 1 width

49.5 cm

Package 1 length

23.5 cm

Package 1 weight

11.3 kg

Scc14

10731304410772

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Energy efficiency optimized

Energy efficient product

F-gas free

N/A

Take-back

Yes

Product contributes to saved and avoided emissions

No

Removable battery

User replaceable

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

e7333b0a-8d2c-4a40-a279-6eb5db3419eb

Energy efficiency optimized

Energy efficient product

End of life manual availability

ENVEOLI1712010_EN

Removable battery

User replaceable

Take-back

Yes

Warranty (in months)

24
Show all specifications
