Specifications
Design
Product brand
Clipsal
Range of product
StarServe
Physical
Width
200 mm
Height
300 mm
Depth
145 mm
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP121018EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Material
Material
metal
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
15 cm
Package 1 width
37 cm
Package 1 length
22.5 cm
Package 1 weight
2.721 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Environmental Disclosure
-
Declaration of Conformity (Sustainability)
Important: Some software files may need a mySchneider or Club login to download.
Frequently Asked Questions
What are the kind of Starserve enclosures are there?
Hide ShowPlease see the Following table for StarServe Enclosures:
| Part Number | Description | Dimensions |
| 3105ABEN | Slimline Plastic Enclosure | 269mm(W) X 383mm(H) X 84mm(D) |
| 3105PEN7440 | ABS Plastic Enclosure - Suited for NBN | 405mm(W) X 750mm(H) X 150mm(D) |

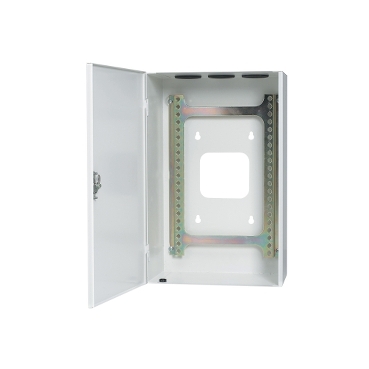

| 8000LEN | Lite-Size Metal Enclosure | 200mm(W) X 300mm(H) X 145(D) |
| 8000LFK | 8000LEN Enclosure Flush Kit | |
| 3105PENF | Professional Metal Enclosure, Flush Mount | 465mm(W) X 895mm(H) X 113mm(D) |
| 8000MEN | Mid-Size Metal Enclosure | 415mm(W) 450mm(H) X 145mm(D) |
| 8000MENFK | 8000MEN Enclosure Flush Kit | |
| 3105PENS | Professional Metal Enclosure, Surface Mount | 465mm(W) X 895mm(H) X 113mm(D) |
For Further information please visit https://updates.clipsal.com/clipsalonline/files/brochures/d0000090.pdf
