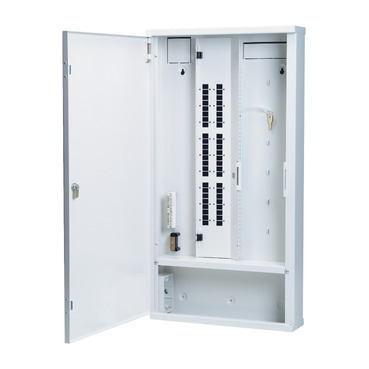

StarServe Actassi Enclosure Surface Mount, 880x466x114mm, 10 Pair Voice DisConnection
Item Number: 3105PENS
Specifications
Design
Product brand
Clipsal
Range of product
StarServe
Physical
Width
465 mm
Height
895 mm
Depth
113 mm
Device mounting
surface
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
Material
Material
metal
Others
Commercial status history
- SESA301466
- Wed Sep 27 02:54:00 EDT 2023
- From Import Local
- From 14 to 19
Package 1 bare product quantity
1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
13.9 cm
Package 1 width
48.0 cm
Package 1 length
92.0 cm
Package 1 weight
15551.0 g
Documents & downloads
hide showFilter items
-
All
-
Product Brochures
-
Other technical guide
-
Installation Instruction
ZIP
StarServe Audio, Audio Distribution System, Easily installed affordable home audio, 23596
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 1.8 MB
ZIP
StarServe Digital Home Networking Installation Guide, 134783
VERSION
1.0
DATE
29 Sep 2023
REVISION
1.0
DOWNLOAD (ZIP) 1.9 MB
ZIP
Modular Switchboards to suit every application, 13227
VERSION
1.0
DATE
02 Aug 2022
REVISION
1.0
DOWNLOAD (ZIP) 450.3 KB
Frequently Asked Questions
What are the kind of Starserve enclosures are there?
Hide ShowPlease see the Following table for StarServe Enclosures:
| Part Number | Description | Dimensions |
| 3105ABEN | Slimline Plastic Enclosure | 269mm(W) X 383mm(H) X 84mm(D) |
| 3105PEN7440 | ABS Plastic Enclosure - Suited for NBN | 405mm(W) X 750mm(H) X 150mm(D) |
| 8000LEN | Lite-Size Metal Enclosure | 200mm(W) X 300mm(H) X 145(D) |
| 8000LFK | 8000LEN Enclosure Flush Kit | |
| 3105PENF | Professional Metal Enclosure, Flush Mount | 465mm(W) X 895mm(H) X 113mm(D) |
| 8000MEN | Mid-Size Metal Enclosure | 415mm(W) 450mm(H) X 145mm(D) |
| 8000MENFK | 8000MEN Enclosure Flush Kit | |
| 3105PENS | Professional Metal Enclosure, Surface Mount | 465mm(W) X 895mm(H) X 113mm(D) |
For Further information please visit https://updates.clipsal.com/clipsalonline/files/brochures/d0000090.pdf
