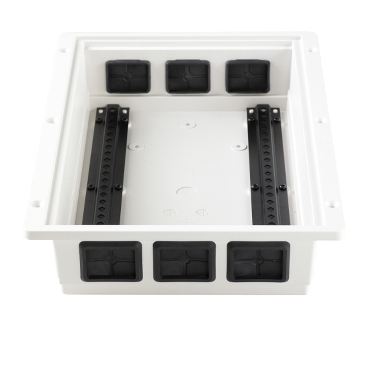

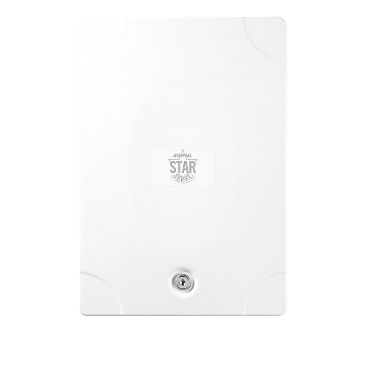

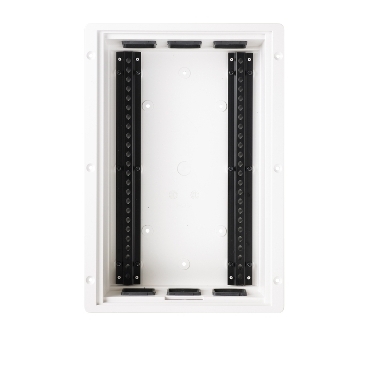

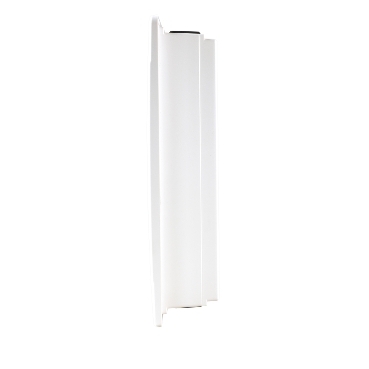

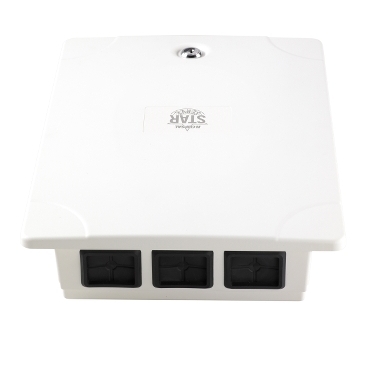

StarServe Actassi Aben Enclosure Flush Mount Only, Slim-Line Plastic, Suit 63mm Stud Wall

Item Number: 3105ABEN

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width269 mm

Height383 mm

Depth84 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554649067	-
3	CAR	39311554649068	-

Specifications

Design

Product brand	Clipsal
Range of product	StarServe

Physical

Width	269 mm
Height	383 mm
Depth	84 mm
Device mounting	flush
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP1210018EN
Eu rohs directive	Compliant By Exemption

Material

Material	ABS (acrylonitrile butadiene-styrene): housing

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Component
Weee exclusion rationale	Component not in scope – non independent function
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	9.2 cm
Package 1 width	28.0 cm
Package 1 length	44.2 cm
Package 1 weight	2006.0 g
Sustainable packaging	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Product Brochures
Environmental Disclosure
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

StarServe Data Home Distribution Units. Fibre to the home solutions, 23487

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 645.9 KB

ZIP

StarServe Audio, Audio Distribution System, Easily installed affordable home audio, 23596

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.8 MB

ZIP

Digital Home Networking – StarServe Data Systems, 134750

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 2.2 MB

ZIP

StarServe Digital Home Networking Installation Guide, 134783

VERSION

1.0

DATE

29 Sep 2023

REVISION

1.0

DOWNLOAD (ZIP) 1.9 MB

ZIP

Plastic Enclosure, Grid Plate, Surround and Cover - Product Environmental Profile

VERSION

1.0

DATE

07 Jul 2026

REVISION

1.0

DOWNLOAD (ZIP) 551.9 KB

ZIP

3105ABEN EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

ZIP

3105ABEN EU RoHS Directive

VERSION

1.0

DATE

01 Jan 1900

REVISION

1.0

Frequently Asked Questions

What are the kind of Starserve enclosures are there?

Hide Show

Please see the Following table for StarServe Enclosures:

Part Number	Description	Dimensions
3105ABEN	Slimline Plastic Enclosure	269mm(W) X 383mm(H) X 84mm(D)
3105PEN7440	ABS Plastic Enclosure - Suited for NBN	405mm(W) X 750mm(H) X 150mm(D)
8000LEN	Lite-Size Metal Enclosure	200mm(W) X 300mm(H) X 145(D)
8000LFK	8000LEN Enclosure Flush Kit
3105PENF	Professional Metal Enclosure, Flush Mount	465mm(W) X 895mm(H) X 113mm(D)
8000MEN	Mid-Size Metal Enclosure	415mm(W) 450mm(H) X 145mm(D)
8000MENFK	8000MEN Enclosure Flush Kit
3105PENS	Professional Metal Enclosure, Surface Mount	465mm(W) X 895mm(H) X 113mm(D)
