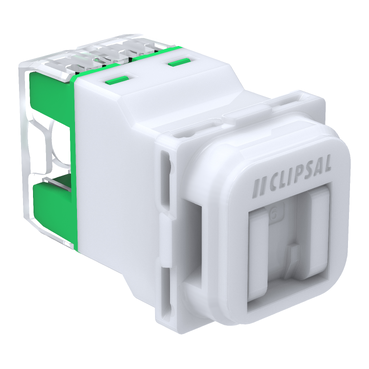

Clipsal Actassi RJ45 Jack CAT6 UTP 40M Shutter | Translucent
Item Number: 40RJ45SMA6SHC-TN
Datasheet
Specifications
Design
| Range | Actassi |
|---|---|
| Product or component type | RJ45 connector |
| Colour tint |
|
| Colour code | TIA-568A/B |
| Product compatibility |
|
| Warranty | 18 months |
Physical
| Device presentation | two piece design |
|---|---|
| Quantity per set | set of 1 |
| [in] rated current | 1.5 A at 25 °C |
| Permissible voltage | 1000 V AC/DC peak, between contacts |
| Contact resistance | 20 mOhm |
| Insulation resistance | initial insulation resistance: > 500 MOhm at 100 V DC |
| Awg gauge | AWG 24...AWG 23 |
| Mechanical durability | 750 cycles |
| Pin number | 8 pins of copper alloy and gold plated conforming to IEC 60603-7 |
| Tool type |
|
| Cable outer diameter | 0.9...1.4 mm |
| Cable shielding type | UTP |
| Communication network category | 6 |
| Communication network type | 1000BASE-T |
| Communication port protocol |
|
| Connections - terminals | insulation displacement contact |
| Transmission frequency | 1...250 MHz |
| Type of footprint | S-110 40 mech |
| Height |
|
| Length |
|
| Width |
|
| Ambient air temperature for operation |
|
| Ambient air temperature for storage |
|
| Climatic withstand | 40/070/21 (21 days) |
| Product certifications | UL listed |
| Standards |
|
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP2605007_V1-EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
| California proposition 65 | WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents & downloads
-
All
-
Product Brochures
-
Technical Data Catalogues
-

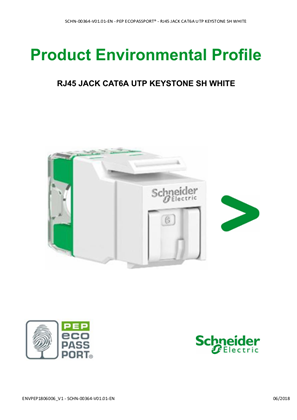

Environmental Disclosure
-

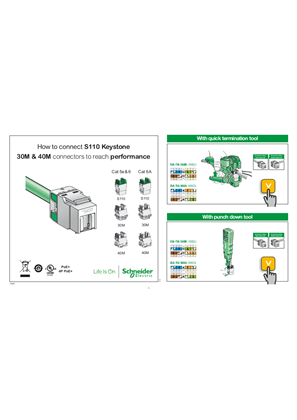

Operating Manuals
-
