Home ProductsNetwork ConnectivityActassiRJ45 Jack

Clipsal Actassi RJ45 Jack CAT6 UTP 30M | Black

Item Number: 30RJ45SMA6C-BK

White Electric 1 PCE 0
Black 1 PCE 0
Blue 1 PCE 0
Cream 1 PCE 0
Green 1 PCE 0
Red 1 PCE 0
Soft Grey 1 PCE 0
Yellow 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606489512446	WE
20	BB1	13606489512443	WE
160	PZC	43606489512444	WE
1	PCE	3606489512392	BK
1	PCE	3606489512408	BU
1	PCE	3606489512460	CM
1	PCE	3606489512415	GR
1	PCE	3606489512422	RD
1	PCE	3606489512439	SG
1	PCE	3606489512453	YL

Specifications

Design

Range	Actassi
Product or component type	RJ45 connector
Colour tint	connector housing: white (ABS + PC) top cover: transparent (PC) IDC cover: green (PC)
Colour code	TIA-568A/B
Product compatibility	RJ11 plug RJ45 plug
Warranty	18 months

Physical

Device presentation	two piece design
Quantity per set	set of 1
[in] rated current	1.5 A at 25 °C
Permissible voltage	1000 V AC/DC peak, between contacts
Contact resistance	20 mOhm
Insulation resistance	initial insulation resistance: >= 500 MOhm at 100 V DC
Awg gauge	AWG 24...AWG 23
Mechanical durability	750 cycles
Pin number	8 pins of copper alloy and gold plated conforming to IEC 60603-7
Tool type	punch down tool quick termination tool
Cable outer diameter	0.9...1.4 mm
Cable shielding type	UTP
Communication network category	6
Communication network type	1000BASE-T
Communication port protocol	PoE 15W (Power over Ethernet) PoE+ 30W (Power over Ethernet Plus) PoE+ (Power over Ethernet) 4PPoE 100W (Power over Ethernet)
Connections - terminals	insulation displacement contact
Transmission frequency	1...250 MHz
Type of footprint	S-110 30 mech
Height	22 mm 0.072 ft
Length	36 mm 0.12 ft
Width	0.052 ft 16 mm
Ambient air temperature for operation	-10...60 °C 14...140 °F
Ambient air temperature for storage	-40...70 °C -40...158 °F
Climatic withstand	40/070/21 (21 days)
Product certifications	UL listed
Standards	ANSI/TIA-568-C.2 IEC 60603-7-2 ISO/IEC 11801:2011 Ed.2.2 AS/NZS 3080:2003 UL 1863 IEC 60512-99-001 IEC 60512-99-002
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP110120EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Legacy weee scope	In
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Weee applicability	Finished product
	At least in Europe
Warranty duration(in months) bmecat	18
Product name	Actassi S-110
Flame retardance	UL94-V0 conforming to UL listed
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	0.06 cm
Package 1 width	10.5 cm
Package 1 length	15 cm
Package 1 weight	10 g
Unit type of package 2	BB1
Number of units in package 2	20
Package 2 height	13 cm
Package 2 width	13 cm
Package 2 length	18 cm
Package 2 weight	285.7 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.05352714285714286
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.003963571428571429
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.006618357142857143
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.082616
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.01582642857142857
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	Yes
Halogen-free status	Halogen free product
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.16255150000000002
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Halogen free product
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18

Show all specifications

Documents & downloads

All
Environmental Disclosure
Operating Manuals
Certificates (MSDS)
Declaration of Conformity
Declaration of Conformity (Sustainability)

Important: Some software files may need a mySchneider or Club login to download.

ZIP

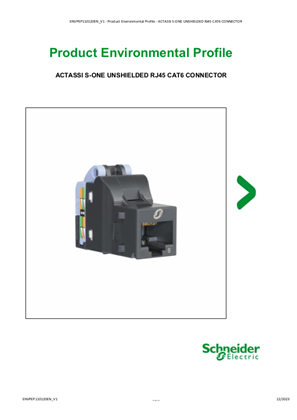

ACTASSI S-ONE UNSHIELDED RJ45 CAT6 CONNECTOR
