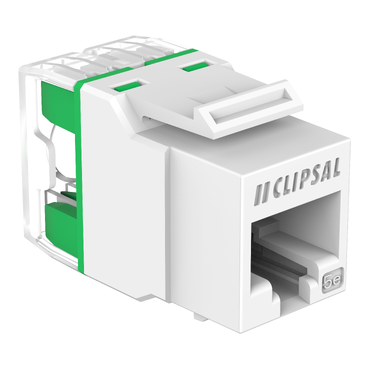

Actassi RJ45 Jack CAT5E UTP Keystone

Actassi RJ45 Jack CAT5E UTP Keystone | White Electric

Item Number: RJ45SMA5C-WE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product or component type

RJ45 connector

Colour tint

  • connector housing: white (ABS + PC)
  • top cover: transparent (PC)
  • IDC cover: green (PC)

Colour code

TIA-568A/B

Product compatibility

  • RJ45 plug
  • RJ11 plug

Physical

Device presentation

two piece design

Quantity per set

set of 1

[in] rated current

1.5 A at 25 °C

Permissible voltage

1000 V AC/DC peak, between contacts

Contact resistance

20 mOhm

Insulation resistance

initial insulation resistance: > 500 MOhm at 100 V DC

Awg gauge

AWG 24...AWG 23

Mechanical durability

750 cycles

Pin number

8 pins of copper alloy and gold plated conforming to IEC 60603-7

Tool type

  • punch down tool
  • quick termination tool

Cable outer diameter

0.9...1.4 mm

Cable shielding type

UTP

Communication network category

5e

Communication network type

1000BASE-T

Connections - terminals

insulation displacement contact

Transmission frequency

1...100 MHz

Type of footprint

S-110 keystone

Height

  • 0.072 ft
  • 22 mm

Length

  • 0.12 ft
  • 36 mm

Width

  • 0.052 ft
  • 16 mm

Ambient air temperature for operation

  • -10...60 °C
  • 14...140 °F

Ambient air temperature for storage

  • -40...158 °F
  • -40...70 °C

Climatic withstand

40/070/21 (21 days)

Product certifications

UL listed

Standards

  • ANSI/TIA-568-C.2
  • IEC 60603-7-2
  • ISO/IEC 11801:2011 Ed.2.2
  • AS/NZS 3080:2003
  • UL 1863

Reach regulation

Free of Substances of Very High Concern above the threshold

Reach free of svhc

Yes

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental disclosure

ENVPEP1806006EN

Circularity profile

N/A

Others

Commercial status history

  • SESA301466
  • Wed Oct 16 04:05:00 EDT 2024
  • From Import Local
  • From 18 to 19

Package 1 bare product quantity

1

Product name

Actassi S-110

Flame retardance

UL94-V0 conforming to UL listed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.2 cm

Package 1 width

1.7 cm

Package 1 length

3.6 cm

Package 1 weight

10 g
