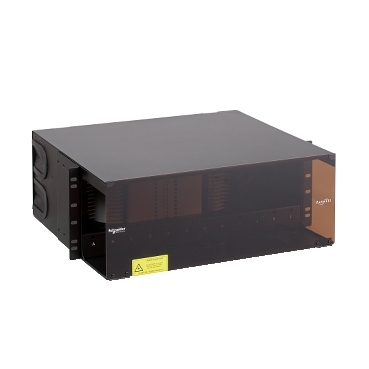

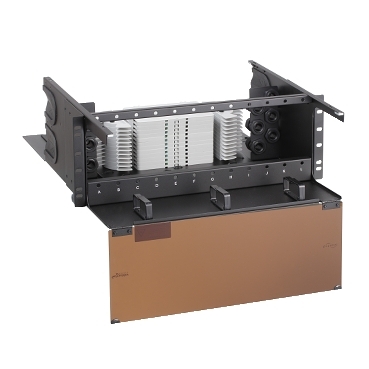

Actassi, Panel 19INC 4U Unloaded Max 12 Plates

Home ProductsNetwork ConnectivityActassiPanel 19INC 4U Unloaded Max 12 Plates

Actassi, Panel 19INC 4U Unloaded Max 12 Plates

Item Number: ACTMP4U

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width482 mm

Height icon

Height175 mm

Depth icon

Depth300 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product or component type

fibre patch panel

Product compatibility

  • 12 optic cassette
  • 12 adaptor plate

Physical

Device presentation

empty

Integrated connection type

LC

Height

175 mm

Width

482 mm

Depth

300 mm

Standards

  • EIA-310D
  • TIA/EIA-568

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

Out

Package 2 bare product quantity

8

At least in Europe

Weee label

No

Package 1 bare product quantity

1

Number of optic fibre

288

Number of port

288

Number of rack unit

4U

Targeted region

  • Asia Pacific.
  • Europe

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

27.000 cm

Package 1 width

49.000 cm

Package 1 length

58.000 cm

Package 1 weight

10.666 kg

Unit type of package 2

P12

Number of units in package 2

8

Package 2 height

93.000 cm

Package 2 width

80.000 cm

Package 2 length

120.000 cm

Package 2 weight

96.328 kg

Sustainable packaging

No

End of life manual availability

N/A

Warranty (in months)

18
Show all specifications
