Actassi Outdoor Fibre Cable OS2, Loose Tube 24 fibres, 1000m

Home ProductsNetwork ConnectivityActassiOutdoor Fibre Cable

Actassi Outdoor Fibre Cable OS2, Loose Tube 24 fibres, 1000m

Item Number: ACTUDSLNA24SM9PEL

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Actassi

Product or component type

fibre optic cable single mode

Device application

communication

Physical

Ambient air temperature for storage

-10...60 °C

Environmental characteristic

  • UV resistant:
  • water resistant (longitudinally):

Reach free of svhc

Yes

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2009015EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Free of Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Material

Material

  • polyamide: jacket
  • PE (polyethylene): jacket

Others

Legacy weee scope

Out

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Finished product

Cable packaging

drum of 1000 m

Maximum attenuation

  • 0.35 dB / 1 km at 1310 nm
  • 0.21 dB / 1 km at 1550 nm
  • 0.24 dB / 1 km at 1625 nm

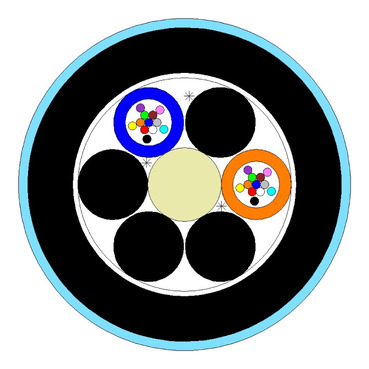

Fibre performance

OS2 9/125 µm

Optic fibre type

loose tube

Number of optic fibre

24

Bending radius

  • 10 x overall diameter static
  • 20 x overall diameter dynamic

Refractive index group

  • 1.467 at 1310 nm
  • 1.468 at 1550 nm
  • 1.468 at 1625 nm

Localisation on device

sheath: blue

Cable length

1000 m

Diameter

6.3 mm

Cable weight

33 kg / 1 km

Ambient air temperature for installation

0...50 °C

Standard

  • fibre performance conforming to ITU G.652.D
  • fibre performance conforming to IEC 60793-2-50 Type B1.3
  • fibre colour coding conforming to TIA/EIA-598-A
  • cabling conforming to ISO/IEC 11801
  • cabling conforming to AS/CA S008
  • cable specification

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

85 cm

Package 1 width

70 cm

Package 1 length

85 cm

Package 1 weight

75 kg

Green premium status for reporting

Green Premium product

Total lifecycle carbon footprint

0 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.0005023172516452189

Carbon footprint of the manufacturing phase [a1 to a3]

0 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.00006843339304278544

Carbon footprint of the distribution phase [a4]

0 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.00002324621753766478

Carbon footprint of the installation phase [a5]

0 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

0.0483315917551154

Carbon footprint of the use phase [b2, b3, b4, b6]

0 kg CO2 eq.

Sustainable packaging

No

Carbon footprint of the end-of-life phase [c1 to c4]

0.00014524511997406178

Carbon footprint of the end-of-life phase [c1 to c4]

0 kg CO2 eq.

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

0.0007478726235845749

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

18
