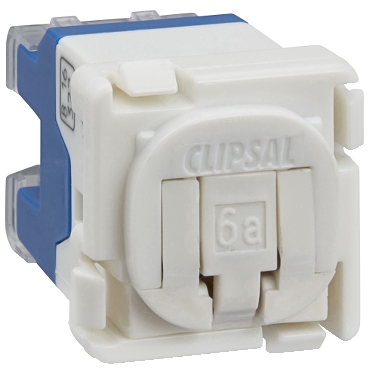

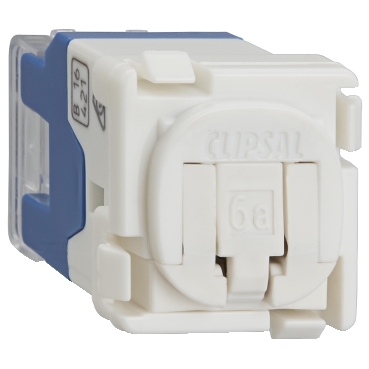

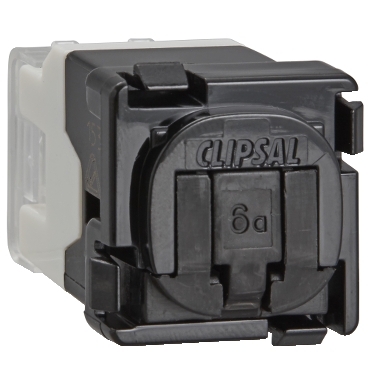

Clipsal Actassi, Modular Socket, Cat6A RJ45 Shutt

Clipsal Actassi, Modular Socket, Cat6A RJ45 Shutt WE

Item Number: 30RJ45SMA6AS-WE

Datasheet

Product Dimensions

Width icon

Width23 mm

Height icon

Height23 mm

Depth icon

Depth35 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Range of product

Actassi

Product or component type

modular jack

Physical

Connector type

110 RJ45

Communication network category

6<sub>A</sub>

Fixing mode

special tool

Awg gauge

AWG 24...AWG 22

[in] rated current

1.5 A

Depth

35 mm

Width

23 mm

Height

23 mm

Eu rohs directive

Under investigation

Environmental disclosure

ENVPEP1806006EN

Material

Material

phosphor bronze

Others

Package 1 bare product quantity

1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.1 cm

Package 1 width

8.8 cm

Package 1 length

10.5 cm

Package 1 weight

10.7 g
