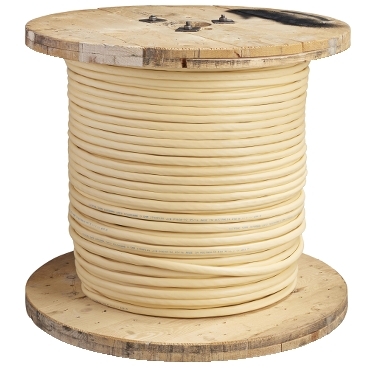

Clipsal Actassi Internal Telephone Cable Unscreened, Plain PVC, 0.50, 50 Pair
Item Number: 2T50PIPV
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Actassi
Colour
external sheath: cream
Physical
Cable shielding type
UTP
Cable stiffness
solid class 1
Ambient air temperature for operation
-20...60 °C
Standards
- ISO/IEC 11801
- AS/NZS 3080
- AS/ACIF S008
Reach free of svhc
Yes
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP1102010EN
Eu rohs directive
Compliant
China rohs regulation
Product out of China RoHS scope
Eu rohs directive
Compliant
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Warranty duration(in months) bmecat
18
Weee label
N/A
Diameter
0.5 mm conductor:
Number of conductors
2
Cable insulation material
- PE (polyethylene)
- PVC (polyvinyl chloride)
External diameter
14.3 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.343 kg
Sustainable packaging
No
China rohs label
1
End of life manual availability
N/A
Warranty (in months)
18
