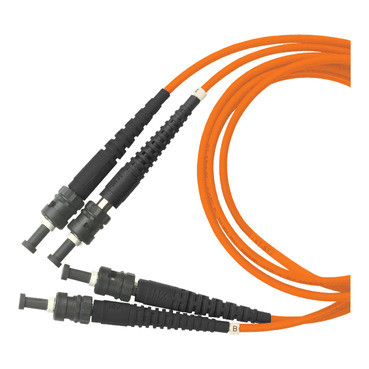

Clipsal Actassi Fibre Patch Cord St Duplex 62.5/125Um, Om1, Multi-Mode, 2.0 Metre
Item Number: TFP2T3M16M20
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Titanium
Physical
Length
2 m
Connector type
- 1 ST
- 2 ST
Cable outer diameter
3.6.6 mm
Environmental characteristic
conforming to EN 50267-2-3
Ambient air temperature for operation
0...70 °C
Standards
- ANSI/TIA/EIA-568-B-3
- ISO/IEC 11801
Reach free of svhc
Yes
Eu rohs directive
Compliant
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
- zirconia: ferrule
- ceramic: ferrule
- TPE (thermoplastic elastomer): boot
Others
Package 1 bare product quantity
1
Optic fiber type
multi mode
Optic fiber diameter
62.5/125 µm
Fibre performance
OM1
Exchange mode
duplex
Attenuation
1.5 dB
Flame retardance
UL94-V0
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 weight
0.076 kg
