Clipsal Actassi Fibre Patch Cord Lc Duplex 50/125Um, OM3, Multi-Mode, 2.0 Metre
Item Number: TFP2L3M35M20
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Range of product
Titanium
Physical
Length
2 m
Connector type
- 2 LC
- 1 LC
Cable outer diameter
3.6.6 mm
Environmental characteristic
conforming to EN 50267-2-3
Ambient air temperature for operation
0...70 °C
Standards
AS/NZS 3080:2003
Reach free of svhc
Yes
Toxic heavy metal free
Yes
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120414EN
Eu rohs directive
Pro-active compliance (Product out of EU RoHS legal scope)
China rohs regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Material
Material
- zirconia: ferrule
- ceramic: ferrule
- TPE (thermoplastic elastomer): boot
Others
Legacy weee scope
Out
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Optic fiber type
multi mode
Optic fiber diameter
50/125 µm
Fibre performance
OM3
Exchange mode
duplex
Attenuation
1.5 dB
Flame retardance
UL94-V0
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.2 cm
Package 1 width
20.7 cm
Package 1 length
30.1 cm
Package 1 weight
44 g
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
Documents & downloads
hide showFilter items
-
All
-
Technical Data Catalogues
-

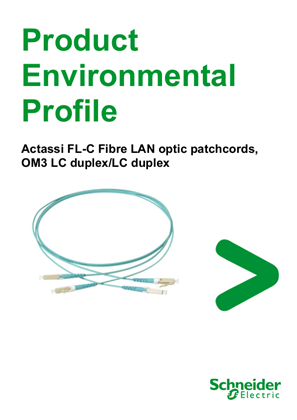

Environmental Disclosure
-
