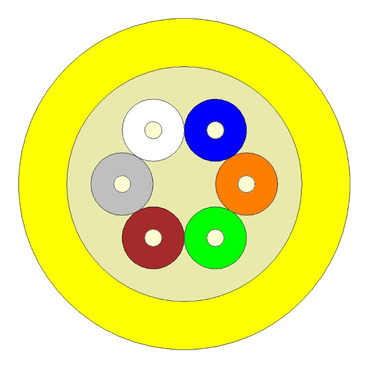

Actassi Fibre Cable OS2 9/125 µm, Tight Buffer 6 fibres, 500m

Item Number: VDIC92506TCL

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606486835098	-

Specifications

Design

Range	Actassi
Product or component type	fibre optic cable single mode
Device application	communication

Physical

Ambient air temperature for storage	-10...60 °C
Environmental characteristic	flame retardant: water resistant (longitudinally): UV resistant:
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2009015EN
Reach regulation	Free of Substances of Very High Concern above the threshold
China rohs regulation	Product out of China RoHS scope
Eu rohs directive	Compliant

Material

Material	PE (polyethylene): jacket

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Cable packaging	drum of 500 m
Maximum attenuation	0.4 dB / 1 km at 1310 nm 0.3 dB / 1 km at 1550 nm 0.3 dB / 1 km at 1625 nm
Fibre performance	OS2 9/125 µm
Optic fibre type	tight buffered
Number of optic fibre	6
Bending radius	10 x overall diameter static 20 x overall diameter dynamic
Refractive index group	1.467 at 1310 nm 1.468 at 1550 nm 1.468 at 1625 nm
Localisation on device	sheath: yellow
Cable length	500 m
Diameter	4.8 mm
Cable weight	22 kg / 1 km
Ambient air temperature for installation	0...50 °C
Standard	fibre performance conforming to IEC 60793-2-50 Type B1.3 flame retardance conforming to IEC 60332-1 flame retardance conforming to IEC 60332-3 C acidity of combustion gases conforming to IEC 60754-1 acidity of combustion gases conforming to IEC 60754-2 smoke generation conforming to IEC 61034 cable specification conforming to IEC 60794-2 fibre colour coding conforming to TIA/EIA-598-A fibre performance conforming to ITU G.652.D cabling conforming to ISO/IEC 11801 cabling conforming to AS/CA S008
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	85 cm
Package 1 width	70 cm
Package 1 length	85 cm
Package 1 weight	10 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0005023172516452189
Carbon footprint of the manufacturing phase [a1 to a3]	0 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.00006843339304278544
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00002324621753766478
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.0483315917551154
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.00014524511997406178
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Halogen-free status	Product contains halogen above thresholds
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.0007478726235845749
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
China rohs label	1
Halogen-free status	Product contains halogen above thresholds
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18

Show all specifications
