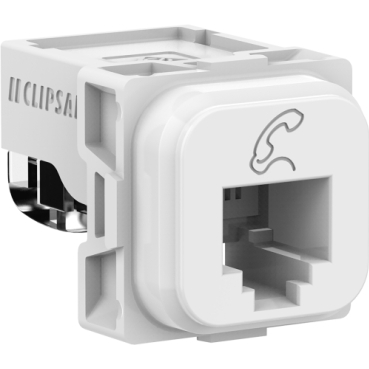

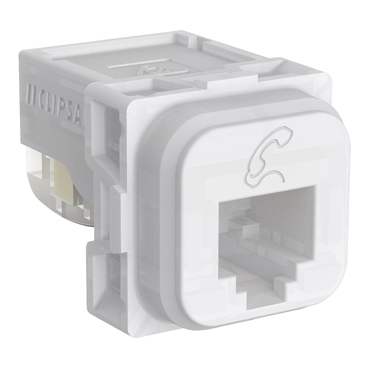

Clipsal Actassi Connector RJ12 4 Pin Telephone Symbol | Extra White
Item Number: 40RJ64SMT-XW
Datasheet
Specifications
Design
| Range | Actassi |
|---|---|
| Product or component type | modular jack |
| Colour tint |
|
| Colour code | XW |
| Product compatibility | RJ12 plug |
| Warranty | 18 months |
Physical
| Device presentation | two piece design |
|---|---|
| Type of packing | individual bag |
| Quantity per set | set of 1 |
| Insulation resistance | initial insulation resistance: > 500 MOhm at 100 V DC |
| Connector type | RJ12 |
| Awg gauge | 24 AWG...22 AWG |
| Mechanical durability | 750 cycles |
| Pin number | 4 pins of copper alloy and gold plated conforming to IEC 60603-7 |
| Tool type | punch down tool |
| Cable outer diameter | 0.8...1.4 mm |
| Cable shielding type | UTP |
| Communication network category | 3 |
| Communication network type | 10/100BASE-T |
| Connections - terminals | IDC |
| Type of footprint | 40 mech |
| Height | 22 mm |
| Length | 30 mm |
| Width | 18 mm |
| Net weight | 0.008 kg |
| Ambient air temperature for operation | -10...60 °C |
| Ambient air temperature for storage | -10...60 °C |
| Product certifications | RCM |
| Standards |
|
| Reach free of svhc | Yes |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP110120EN |
| Reach regulation | Free of Substances of Very High Concern above the threshold |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant |
