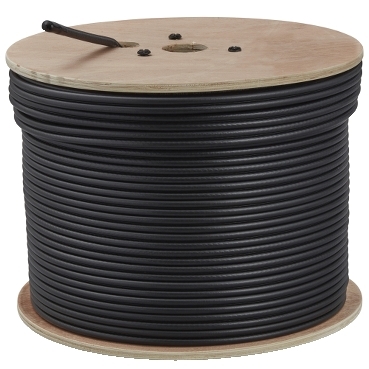

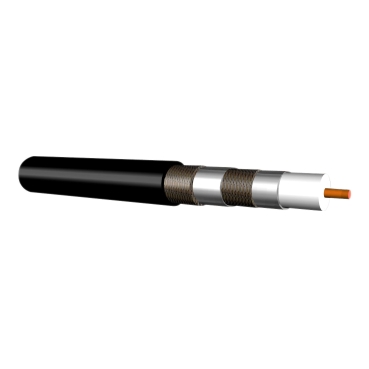

Clipsal Actassi Coaxial Cable to Suit Satellite TV RG6, Quad Shield, 150 Metre Reel
Item Number: 3105RG6QS15R
Datasheet
Close
Specifications
Design
Product brand
Clipsal
Product or component type
cable
Colour
external sheath: black
Physical
Cable stiffness
solid class 1
Awg gauge
AWG 18
Ambient air temperature for operation
80 °C
Eu rohs directive
Not compliant
Circularity profile
N/A
Material
Material
- inside bare copper conductor
- outside aluminium conductor
Others
Package 1 bare product quantity
1
Sheath type
foil + braiding
Diameter
- conductor: inner: 1.02 mm
- conductor: external: 4.57 mm
Cable insulation material
- PVC (polyvinyl chloride)
- PE (polyethylene)
External diameter
7.57 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.03 cm
Package 1 width
0.037 cm
Package 1 length
0.036 cm
Package 1 weight
0.05 kg
