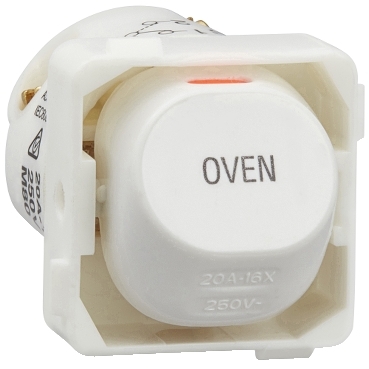

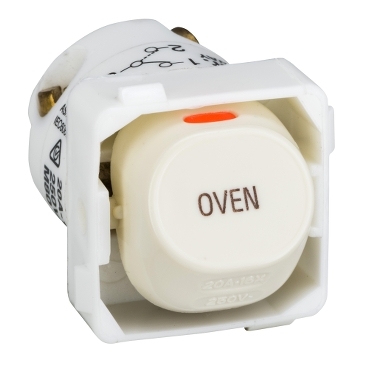

30 Series Switch Mechanism 20A, Marked Oven, (Universal Mech)

Home ProductsNetwork Connectivity30 SeriesSwitch Mechanism

30 Series Switch Mechanism 20A, Marked Oven, (Universal Mech) | White Electric

Item Number: 30USMOV-WE

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

  • Standard Series
  • Series 30

Product brand

Clipsal

Physical

Device presentation

basic element

Device mounting

flush

Number of rocker

1

Local signalling

without

[ue] rated operational voltage

250 V AC

Rated current

  • 20 A
  • 16 AX, fluorescent lamp

Marking

oven

Fixing mode

by screws

Actuator

rocker

Switch function

  • 2-way
  • 1-way

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP120506EN

Eu rohs directive

Compliant with Exemptions

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Outside of Europe

Weee label

N/A

Marking location

marking on surface

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.7 cm

Package 1 width

2.4 cm

Package 1 length

2.4 cm

Package 1 weight

14 g

Sustainable packaging

No

End of life manual availability

N/A

Warranty (in months)

18
