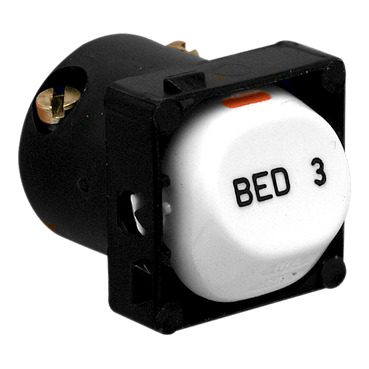

30 Series Switch Mechanism 10A, Marked BED 3 | White Electric

Item Number: 30BD3M-WE

White Electric 1 PCE 0
Cream 1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554268411	WE
10	CRT	9311554268428	WE
500	CAR	19311554268425	WE
1	PCE	9311554430375	CM
10	CRT	9311554430382	CM
500	CAR	19311554430389	CM

Specifications

Design

Range of product	Series 30 Standard Series
Product brand	Clipsal
Surface finish	glossy

Physical

Device presentation	basic element
Number of poles	1
Device mounting	flush
Number of rocker	1
Local signalling	without
[ue] rated operational voltage	250 V AC
Rated current	10 A
Marking	BED3
Fixing mode	clip-in
Actuator	rocker
Switch function	1-pole
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP120506EN
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 2 bare product quantity	10
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Package 1 bare product quantity	1
Weee applicability	Finished product
Weee label	N/A
Main colour tint	white electric
Marking location	marking on surface
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.3 cm
Package 1 width	2.3 cm
Package 1 length	3 cm
Package 1 weight	13.8 g
Unit type of package 2	BB1
Number of units in package 2	10
Package 2 height	4.2 cm
Package 2 width	5.6 cm
Package 2 length	11.6 cm
Package 2 weight	156 g
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	0.2 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.0675467608685965
Carbon footprint of the manufacturing phase [a1 to a3]	0.1 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.0025523384185136455
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00046212237711732747
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1056339273201361
Carbon footprint of the use phase [b2, b3, b4, b6]	0.1 kg CO2 eq.
Sustainable packaging	Yes
Carbon footprint of the end-of-life phase [c1 to c4]	0.033659462557460336
Carbon footprint of the end-of-life phase [c1 to c4]	0 kg CO2 eq.
Pvc free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	0.2098546115418239
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	Yes
Pvc free	No
End of life manual availability	N/A
Take-back	No
Warranty (in months)	18
