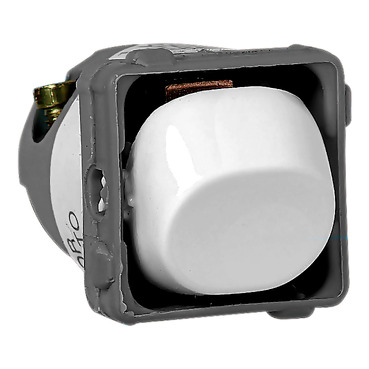

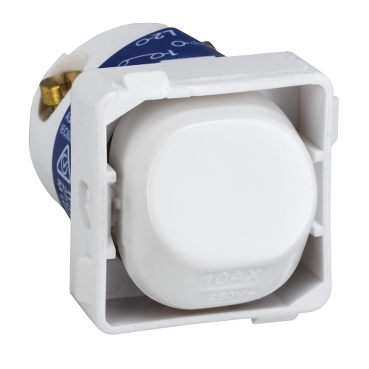

30 Series Switch Mechanism 1 Way, with 2 looping Terminals | White Electric
Item Number: 30/1/2LM-WE
Datasheet
Close
Specifications
Design
Range of product
- Series 30
- Standard Series
Product brand
Clipsal
Physical
Device presentation
basic element
Device mounting
flush
Number of rocker
1
Local signalling
without
[ue] rated operational voltage
250 V AC
Rated current
10 A
Marking
without marking
Actuator
rocker
Switch function
1-way
Mercury free
Yes
Rohs exemption information
Yes
Environmental disclosure
ENVPEP120506EN
Eu rohs directive
Compliant with Exemptions
China rohs regulation
Product out of China RoHS scope. Substance declaration for your information
Others
Legacy weee scope
In
Package 1 bare product quantity
1
Outside of Europe
Weee label
N/A
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
2.2 cm
Package 1 width
2.2 cm
Package 1 length
2.8 cm
Package 1 weight
0.02 kg
Sustainable packaging
No
End of life manual availability
N/A
Warranty (in months)
18
