Clipsal - Lighting Weatherproof Batten LED 40W, 5000K, IP65
Item Number: CLITPWPLED2
Excellent for commercial and residential applications such as schools, car parks, public buildings, carports and garages, the Clipsal TPWP Series LED Weatherproof Battens offer advanced performance and protection. This model is 40W, 250V and provides lumens of >3800. It has a lifespan of more than 50,000 hours.
Datasheet
Close
Specifications
Design
| Range | Clipsal |
|---|---|
| Product or component type | batten light |
| Device application | lighting |
Physical
| Type of installation | outdoor |
|---|---|
| [ue] rated operational voltage | 240 V AC 50 Hz |
| Mounting mode | wall-mounted |
| Control type | test button |
| Supply | non-maintained |
| Height | 90 mm |
| Width | 140 mm |
| Length | 1274 mm |
| Net weight | 2.26 kg |
| Ip degree of protection | IP65 |
| Ik degree of protection | IK08 |
| Relative humidity | 10...85 % non-condensing |
| Ambient air temperature for operation | -10...50 °C |
Documents & downloads
Filter items
-
All
-
Product Brochures
-

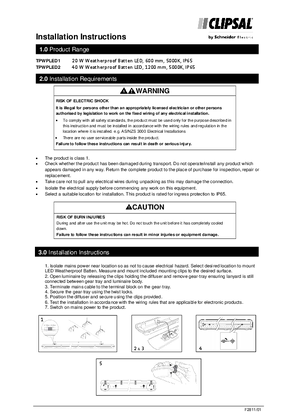

Installation Instruction
