Home ProductsLightingClipsal - LightingWeatherproof Batten LED

Clipsal - Lighting Weatherproof Batten LED 1200mm, IP65, CCT 3K/4K/6K, P/Shift 40W/20W, Emergency

Item Number: CLITPWP2EM

1 PCE 0

Where To Buy

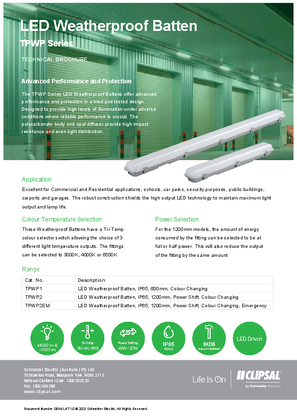

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	9311554812072	-

Specifications

Design

Range	Clipsal
Product or component type	batten light
Device application	lighting
Colour tint	grey/white

Physical

Type of installation	outdoor
[ue] rated operational voltage	240 V AC 50 Hz
Mounting mode	ceiling
Electrical insulation class	class I
Control type	test button
Supply	non-maintained
Height	68 mm
Width	105 mm
Length	1260 mm
Net weight	2.0 kg
Ip degree of protection	IP65
Ik degree of protection	IK08
Relative humidity	10...95 %
Ambient air temperature for operation	-10...45 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2409030_V1
Eu rohs directive	Compliant By Exemption

Others

Average percentage of recycled plastic content	0 %
Package 1 bare product quantity	1
Legacy weee scope	In
Weee applicability	Finished product
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Product name	TPWP Series
Battery type	LiFePO4
Operational power in w	44 W 22 W
Colour rendering index	R_a=80
Luminous flux	4000 lm 2000 lm
Bulb lifespan	30000 h
Colour temperature	3000 K 4000 K 6500 K
Light source	LED
Autonomy	3 h
Charging time	16 h
Shape	rectangular
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.4 cm
Package 1 width	10.8 cm
Package 1 length	130.0 cm
Package 1 weight	2.2 kg
Unit type of package 2	BB1
Number of units in package 2	4
Package 2 height	17.0 cm
Package 2 width	23.0 cm
Package 2 length	132.5 cm
Package 2 weight	10.0 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	243 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.6519751296162237
Carbon footprint of the manufacturing phase [a1 to a3]	3 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.05165530682762953
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.002126960033434405
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	239.2651325210617
Carbon footprint of the use phase [b2, b3, b4, b6]	239 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.7587088141955607
Carbon footprint of the end-of-life phase [c1 to c4]	0.8 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	242.72959873173454
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	Yes
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2409030EN
Take-back	No
Warranty (in months)	18
