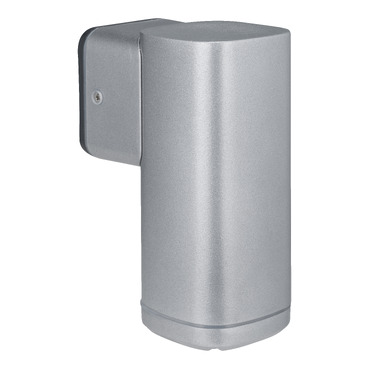

Clipsal - Lighting Wall Light 6W, LED, 4000K, IP54, Single Silver Body
Item Number: CLITPWL1
Engineered to provide precise exterior and interior access lighting for residential, retail and light commercial buildings, the Clipsal TPWL Series Wall Lights combine highly efficient LED technology in a stylish durable UV stabilised die cast aluminium body. This TPWL1 model is 6W, 250V and is 157mm long.
Datasheet
Close
Specifications
Design
| Range | Clipsal |
|---|---|
| Product or component type | wall light |
| Device application | lighting |
| Colour | body: silver |
Physical
| Type of installation | outdoor |
|---|---|
| [ue] rated operational voltage | 240 V AC 50 Hz |
| Device mounting | wall mounted |
| Mounting mode | surface mounted |
| Electrical insulation class | class I |
| Length | 157 mm |
| Width | 70 mm |
| Depth | 108 mm |
| Net weight | 0.6 kg |
| Ip degree of protection | IP54 |
| Ambient air temperature for operation | -10...40 °C |
| Relative humidity | 10...95 % non-condensing |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
Filter items
-
All
-
Product Brochures
-

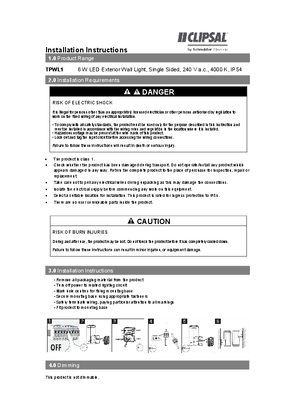

Installation Instruction
-
Certificates (MSDS)
-
Declaration of Conformity (Sustainability)
