Home ProductsLightingClipsal - LightingSpot light twin LED

Clipsal - Lighting Spot light twin LED with sensor, IP54, IK04, black

Item Number: CLITPSF

1 PCE 0

Where To Buy

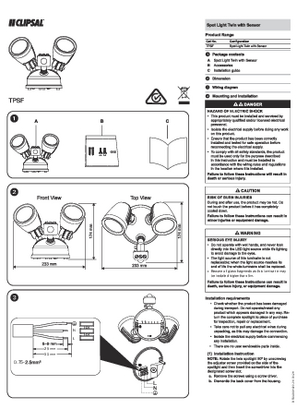

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606487344773	-
6	CAR	13606487344770	-

Specifications

Design

Range	Clipsal
Product or component type	batten light
Device application	lighting
Colour tint	black

Physical

[ue] rated operational voltage	230...240 V AC 50 Hz
Device mounting	surface
Mounting mode	by screws
Ip degree of protection	IP54
Ik degree of protection	IK04
Electrical insulation class	class I
Width	233 mm
Height	174 mm
Net weight	895 g
Ambient air temperature for operation	-10...45 °C
Relative humidity	10...95 % non-condensing
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2502027_V1
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	6
Package 3 bare product quantity	288
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Product name	TPDB Series
Operational power in w	30 W
Light source	LED 25 W
Luminous flux	1200 lm
Bulb lifespan	35000 h
Colour temperature	3000 K 4000 K 5700 K
Main colour tint	black
Colour rendering index	R_a=80
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	23.2 cm
Package 1 width	8.4 cm
Package 1 length	10.7 cm
Package 1 weight	816 g
Unit type of package 2	CAR
Number of units in package 2	6
Package 2 height	25.2 cm
Package 2 width	23.3 cm
Package 2 length	27.3 cm
Package 2 weight	5.14 kg
Unit type of package 3	PAL
Number of units in package 3	288
Package 3 height	91.2 cm
Package 3 width	114 cm
Package 3 length	114 cm
Package 3 weight	246 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	342 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.970773873807697
Carbon footprint of the manufacturing phase [a1 to a3]	8 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.06993591865948547
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.009867382373974292
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	333.5630656560366
Carbon footprint of the use phase [b2, b3, b4, b6]	334 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.39774019787943365
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	342.0113830287572
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2502027EN
Take-back	No
Warranty (in months)	18
