Clipsal - Lighting LED Weatherproof Batten 12W, 4000K, Grey Base with Opal Diffuser
Item Number: CLITUFF112LED
Designed for exterior commercial applications where illuminating areas for security purposes is critical, the TUFF Series LED Weatherproof Battens have a tough impact resistant body enabling protection in high abuse areas. It is rated 12W, 240V.
Datasheet
Close
Specifications
Design
| Range | Clipsal |
|---|---|
| Product or component type | batten light |
| Device application | secure lighting |
Physical
| Type of installation | outdoor |
|---|---|
| [ue] rated operational voltage | 240 V AC 50 Hz |
| Mounting mode | wall-mounted |
| Height | 116 mm |
| Width | 96 mm |
| Length | 675 mm |
| Net weight | 1.6 kg |
| Ip degree of protection | IP54 |
| Relative humidity | 10...95 % non-condensing |
| Ambient air temperature for operation | 0...60 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
Filter items
-
All
-
Product Brochures
-

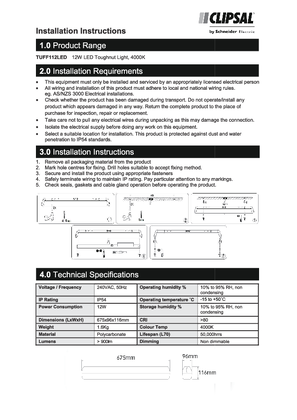

Installation Instruction
-
