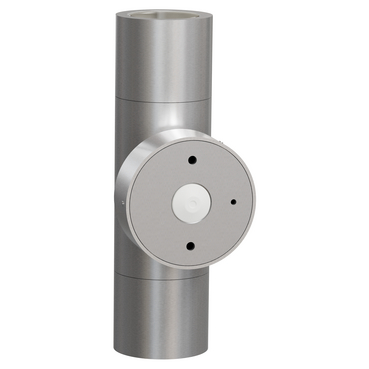

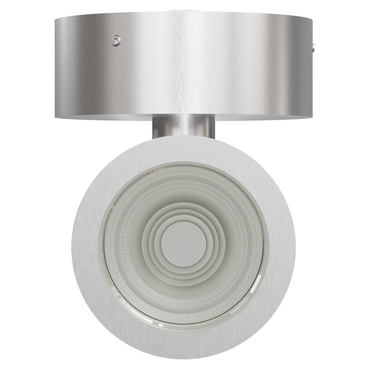

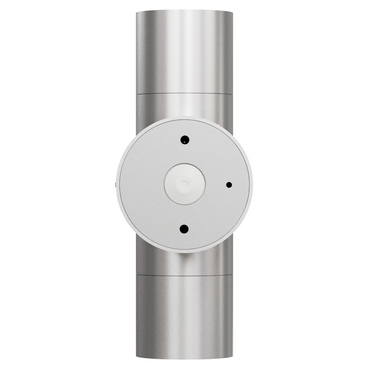

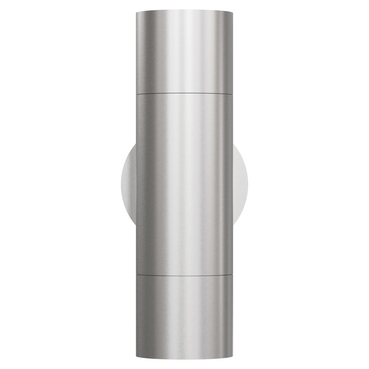

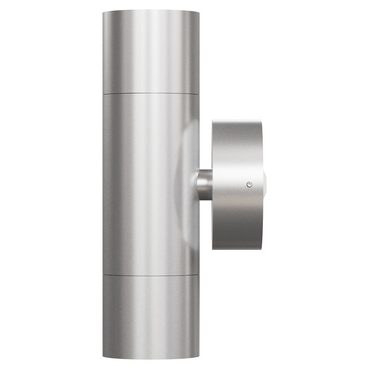

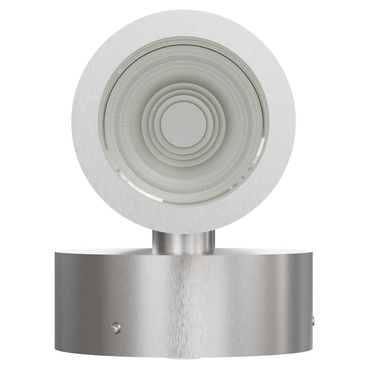

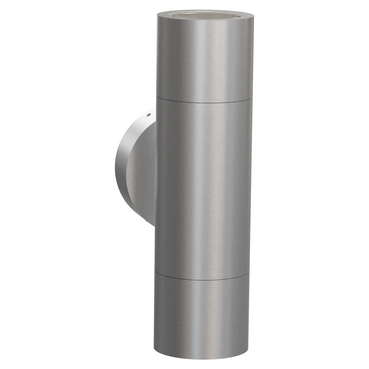

Clipsal - Lighting LED wall light 9W, 4000K, IP54, silver

Item Number: CLITPWL

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width80 mm

Height210 mm

Depth100 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606487344766	-
8	CAR	13606487344763	-

Specifications

Design

Range	Clipsal
Product or component type	wall light
Device application	lighting

Physical

Type of installation	outdoor
[ue] rated operational voltage	230...240 V AC 50 Hz
Provided equipment	allen key 2 screws washer
Device mounting	wall mounted
Mounting mode	surface mounted
Fixing mode	screwed
Electrical insulation class	class I
Height	210 mm
Length	60 mm
Width	80 mm
Depth	100 mm
Net weight	710 g
Ip degree of protection	IP54
Ik degree of protection	IK10
Ambient air temperature for operation	-10...45 °C
Relative humidity	10...95 % non-condensing
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2502027_V1
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	8
Package 3 bare product quantity	320
Average percentage of recycled plastic content	0 %
	Outside of Europe
Warranty duration(in months) bmecat	18
Weee label	N/A
Weee applicability	Finished product
Product name	TPWL Series
Operational power in w	9 W
Light source	LED
Colour rendering index	R_a=80
Luminous flux	260 lm 350 lm 410 lm
Bulb lifespan	15000 h
Colour temperature	3000 K 4000 K 6500 K
Shape	cylindrical
Targeted country	Australia
Main colour tint	silver
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	20 cm
Package 1 width	6.4 cm
Package 1 length	19.8 cm
Package 1 weight	505 g
Unit type of package 2	CAR
Number of units in package 2	8
Package 2 height	22 cm
Package 2 width	27.7 cm
Package 2 length	41.5 cm
Package 2 weight	4.52 kg
Unit type of package 3	PAL
Number of units in package 3	320
Package 3 height	104.8 cm
Package 3 width	114 cm
Package 3 length	114 cm
Package 3 weight	195 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	337 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	3.619820868950438
Carbon footprint of the manufacturing phase [a1 to a3]	4 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.03176046665741022
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.00448114037666998
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	333.5630656560366
Carbon footprint of the use phase [b2, b3, b4, b6]	334 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.18062841720244063
Carbon footprint of the end-of-life phase [c1 to c4]	0.2 kg CO2 eq.
Pvc free	Yes
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	337.3997565492236
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	Yes
End of life manual availability	ENVEOLI2502027EN
Take-back	No
Warranty (in months)	18
