Specifications
Design
| Range | Clipsal |
|---|---|
| Product or component type | panel light |
| Device application | lighting |
| Warranty | 3-Years |
Physical
| Type of installation | indoor |
|---|---|
| [ue] rated operational voltage | 240 V AC 50 Hz |
| Mounting mode | ceiling |
| Width | 595 mm |
| Length | 595 mm |
| Depth | 11 mm |
| Net weight | 3.2 kg |
| Ip degree of protection | IP20 |
| Relative humidity | 10...95 % non-condensing |
| Ambient air temperature for operation | -10...50 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
Filter items
-
All
-
Product Brochures
-

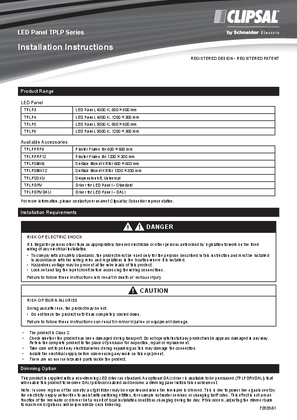

Installation Instruction
-
Declaration of Conformity (Sustainability)
