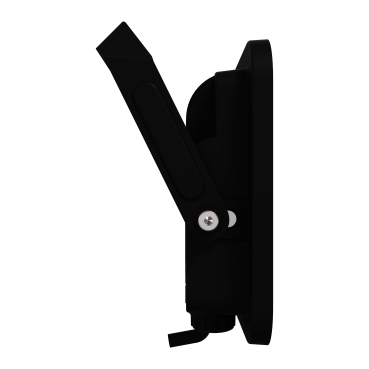

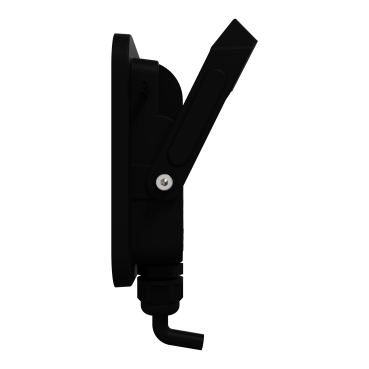

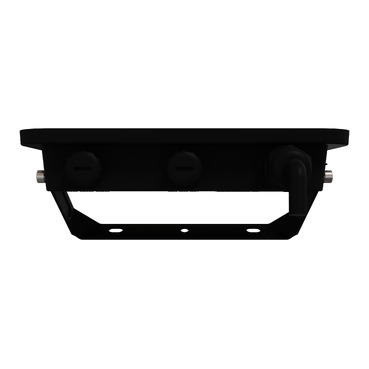

Clipsal - Lighting LED Floodlight 30W, 20W, 15W, CCT, IP65, black

Item Number: CLITPFLT30PSC

1 PCE 0

A low profile floodlight range that is high in efficiency, low in wattage but large in output. This 30W model is available with power selectable switch to reduce the wattage down to 15W and a Tri-temperature switch to allow the choice of output colour temperature before installation. Suitable for illuminating large outdoor areas this range also available in 50W, 100W and 20W sensor version.

Where To Buy

Datasheet

Download

Product Dimensions

Width86 mm

Heightoutdoor: 116 mm

Depth27 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606486373828	-

Specifications

Design

Range	Clipsal
Product or component type	floodlight
Device application	lighting
Warranty	3-Years

Physical

Type of installation	outdoor
Device mounting	surface ceiling
[ue] rated operational voltage	230 V AC 50 Hz
Height	outdoor: 116 mm
Width	86 mm
Depth	27 mm
Net weight	0.40 kg
Environmental characteristic	weatherproof
Ip degree of protection	IP65
Ambient air temperature for operation	-20...40 °C
Relative humidity	10...95 %
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2305021_V1
Eu rohs directive	Compliant By Exemption

Others

Package 2 bare product quantity	12
Package 1 bare product quantity	1
	Outside of Europe
Warranty duration(in months) bmecat	36
Weee label	N/A
Weee applicability	Finished product
Legacy weee scope	In
Average percentage of recycled plastic content	0 %
Main colour tint	black
Operational power in w	30 W 20 W 15 W
Light source	LED
Luminous flux	0...95 % RH non-condensing: 3150 lm 0...95 % RH non-condensing: 2100 lm 0...95 % RH non-condensing: 1575 lm
Colour rendering index	R_a=80
Bulb lifespan	50000 h
Colour temperature	3000 K 4000 K 6000 K
Beam angle	110 °
Cable length	0.6 m
Targeted country	Australia New Zealand
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	5.1 cm
Package 1 width	17.5 cm
Package 1 length	17.4 cm
Package 1 weight	676 g
Unit type of package 2	CAR
Number of units in package 2	12
Package 2 height	38 cm
Package 2 width	20.5 cm
Package 2 length	33 cm
Package 2 weight	8.636 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	205 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	7.182042873123188
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1941078712150216
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.23248535721848104
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	197.42000000000004
Carbon footprint of the use phase [b2, b3, b4, b6]	197 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.3624069863690515
Carbon footprint of the end-of-life phase [c1 to c4]	0.4 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	205.3910430879258
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2305021
Take-back	No
Warranty (in months)	36
