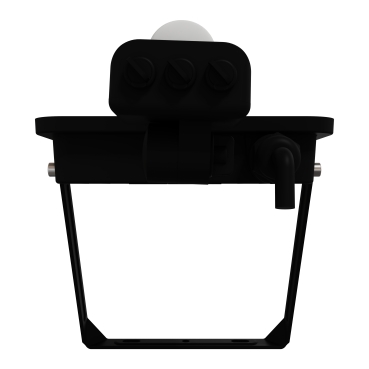

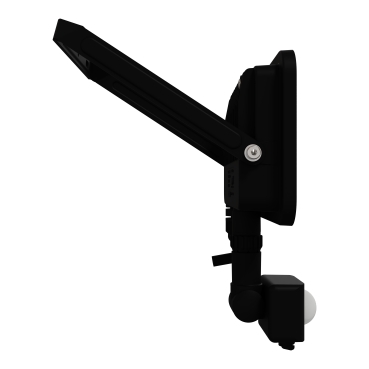

Clipsal - Lighting LED Floodlight 20W, 4000K, IP65, PIR sensor, black

Item Number: CLITPFLT20SEN

1 PCE 0

A low profile floodlight range that is high in efficiency, low in wattage but large in output. This 20W model is available with built in PIR motion sensor which picks up movement and automatically turns on the light. Suitable for illuminating large outdoor areas this range also available in 30W, 50W and 100W versions.

Where To Buy

Datasheet

Download

Product Dimensions

Width122 mm

Heightoutdoor: 166 mm

Depth29 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606486373859	-

Specifications

Design

Range	Clipsal
Product or component type	floodlight
Device application	lighting
Warranty	3-Years

Physical

Type of installation	outdoor
Device mounting	surface ceiling
[ue] rated operational voltage	230 V AC 50 Hz
Height	outdoor: 166 mm
Width	122 mm
Depth	29 mm
Net weight	0.68 kg
Environmental characteristic	weatherproof
Ip degree of protection	IP65
Ambient air temperature for operation	-20...40 °C
Relative humidity	10...95 %
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2305021_V1
Eu rohs directive	Compliant By Exemption

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	16
Average percentage of recycled plastic content	0 %
	Outside of Europe
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	36
Main colour tint	black
Operational power in w	20 W
Light source	LED
Luminous flux	0...95 % RH non-condensing: 2100 lm
Colour rendering index	R_a=80
Bulb lifespan	50000 h
Colour temperature	4000 K
Beam angle	110 °
Cable length	0.6 m
Targeted country	Australia New Zealand
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	6 cm
Package 1 width	14.7 cm
Package 1 length	21.7 cm
Package 1 weight	621 g
Unit type of package 2	CAR
Number of units in package 2	16
Package 2 height	30.5 cm
Package 2 width	23 cm
Package 2 length	55.5 cm
Package 2 weight	10.654 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	205 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	6.597705065398668
Carbon footprint of the manufacturing phase [a1 to a3]	7 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.1783150710422018
Carbon footprint of the distribution phase [a4]	0.2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.21357012845070522
Carbon footprint of the installation phase [a5]	0.2 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	197.42000000000004
Carbon footprint of the use phase [b2, b3, b4, b6]	197 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.3329212108508594
Carbon footprint of the end-of-life phase [c1 to c4]	0.3 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	204.74251147574248
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2305021
Take-back	No
Warranty (in months)	36
