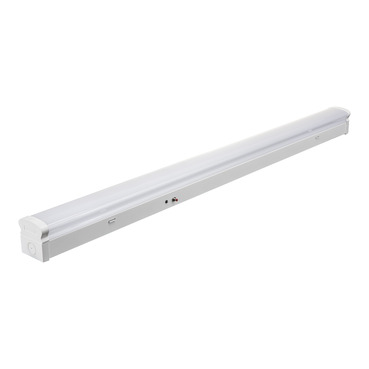

Clipsal - Lighting LED diffused batten light 40W, 3800 Im, 4000K, IP20, 1200mm, Emergency
Item Number: CLITPDBLED2EM
Datasheet
Close
Specifications
Design
| Range | Actassi |
|---|---|
| Product or component type | batten light |
| Device application |
|
Physical
| [ue] rated operational voltage | 240 V AC 50 Hz |
|---|---|
| Control type | test button |
| Supply | maintained |
| Device mounting | surface |
| Mounting mode | by screws |
| Ip degree of protection | IP20 |
| Length | 1230 mm |
| Width | 80 mm |
| Height | 85 mm |
| Net weight | 1.8 kg |
| Ambient air temperature for operation | -10...40 °C |
| Relative humidity | 10...85 % |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| China rohs regulation | Product out of China RoHS scope |
| Eu rohs directive | Compliant By Exemption |
Documents & downloads
Filter items
-
All
-
Product Brochures
-

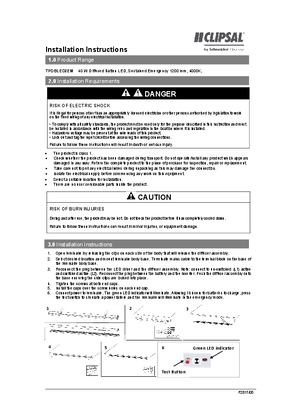

Installation Instruction
-
