Clipsal - Lighting LED Diffused Batten 36W, 1200mm, 4500lm, white

Item Number: CLITPDB1200

1 PCE 0

Where To Buy

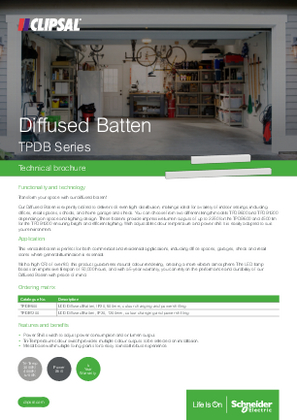

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606487149330	-

Specifications

Design

Range	Clipsal
Product or component type	batten light
Device application	lighting
Market segment	small commercial residential
Colour tint	white
Warranty	3 years

Physical

Type of installation	indoor/outdoor
[ue] rated operational voltage	230/240 V AC 50 Hz
Device mounting	surface
Mounting mode	surface mounting
Ip degree of protection	IP20
Ik degree of protection	IK02
Electrical insulation class	class I
Length	600 mm
Width	70 mm
Height	68 mm
Net weight	1550 g
Ambient air temperature for operation	-10...45 °C
Relative humidity	10...95 % non-condensing
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2409030_V1
Eu rohs directive	Compliant

Others

Legacy weee scope	In
Average percentage of recycled plastic content	0 %
	Outside of Europe
Package 3 bare product quantity	120
Package 2 bare product quantity	4
Package 1 bare product quantity	1
Warranty duration(in months) bmecat	36
Weee label	N/A
Weee applicability	Finished product
Product name	TPDB Series
Operational power in w	36 W
Light source	LED 36 W
Luminous flux	4500 lm
Bulb lifespan	50000 h
Colour temperature	3000 K 4000 K 5000 K
Shape	rectangular
Main colour tint	white
Colour rendering index	R_a=80
Targeted country	Australia
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	7.6 cm
Package 1 width	7.6 cm
Package 1 length	123.3 cm
Package 1 weight	1.862 kg
Unit type of package 2	CAR
Number of units in package 2	4
Package 2 height	18.5 cm
Package 2 width	17.4 cm
Package 2 length	131.5 cm
Package 2 weight	8.14 kg
Unit type of package 3	PAL
Number of units in package 3	120
Package 3 height	110 cm
Package 3 width	114 cm
Package 3 length	135 cm
Package 3 weight	267.2 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	242 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	2.244535314247913
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.043719173324111904
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0018001816282976646
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	239.2651325210617
Carbon footprint of the use phase [b2, b3, b4, b6]	239 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.6421435509236972
Carbon footprint of the end-of-life phase [c1 to c4]	0.6 kg CO2 eq.
Pvc free	No
Silicone-free	No
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	242.1973307411857
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Pvc free	No
Silicone-free	No
End of life manual availability	ENVEOLI2409030EN
Take-back	No
Warranty (in months)	36
