Clipsal - Lighting Circular LED 17W, 1700lm, IP54, white

Item Number: CLITPCLS

1 PCE 0

Where To Buy

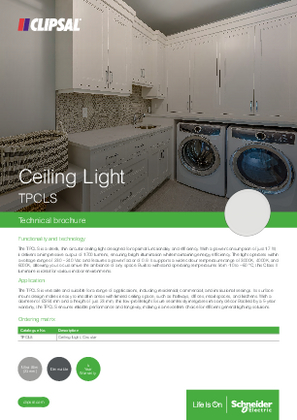

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606487344759	-

Specifications

Design

Range	Clipsal
Product or component type	ceiling light
Device application	lighting
Market segment	residential small commercial
Colour tint	white
Warranty	5 Years

Physical

Type of installation	indoor
[ue] rated operational voltage	230/240 V AC 50 Hz
Device mounting	ceiling
Mounting mode	surface mounted
Height	23 mm
Ip degree of protection	IP54
Ik degree of protection	IK02
Ambient air temperature for operation	0...40 °C
Relative humidity	10...95 % non-condensing
Reach free of svhc	Yes
Toxic heavy metal free	Yes
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2408021EN
Eu rohs directive	Compliant

Material

Device composition	base white diffuser white opal

Others

Legacy weee scope	In
Package 1 bare product quantity	1
Package 2 bare product quantity	6
Package 3 bare product quantity	192
Weee label	N/A
Weee applicability	Finished product
Warranty duration(in months) bmecat	60
	Outside of Europe
Average percentage of recycled plastic content	0 %
Operational power in w	17 W
Light source	LED
Colour rendering index	R_a=80
Luminous flux	1700 lm
Bulb lifespan	50000 h
Colour temperature	3000 K 4000 K 5700 K
Beam angle	110 °
Shape	round
Diameter	294 mm
Targeted country	Australia New Zealand
Main colour tint	white
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	30 cm
Package 1 width	2.8 cm
Package 1 length	30 cm
Package 1 weight	710 g
Unit type of package 2	CAR
Number of units in package 2	6
Package 2 height	35 cm
Package 2 width	21.3 cm
Package 2 length	34 cm
Package 2 weight	4.884 kg
Unit type of package 3	PAL
Number of units in package 3	192
Package 3 height	110 cm
Package 3 width	114 cm
Package 3 length	114 cm
Package 3 weight	170.288 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	13 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	11.875386066886746
Carbon footprint of the manufacturing phase [a1 to a3]	12 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.08869615107094447
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.0309179655644878
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0
Carbon footprint of the use phase [b2, b3, b4, b6]	0 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.1200289437492597
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	13.115029127271438
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
End of life manual availability	ENVEOLI2408021EN
Take-back	No
Warranty (in months)	60
